Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UCD Series Datasheet
Standard Package	1000
Manufacturer	Nichicon
Series	UCD
Packaging	Tape & Reel (TR)
Part Status	Active
Capacitance	47µF
Tolerance	±20%
Voltage - Rated	35V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Polarization	Polar
Ratings	AEC-Q200
Applications	Automotive
Ripple Current @ Low Frequency	120mA @ 120Hz
Ripple Current @ High Frequency	240mA @ 100kHz
Impedance	360 mOhms
Lead Spacing	-
Size / Dimension	0.248" Dia (6.30mm)
Height - Seated (Max)	0.240" (6.10mm)
Surface Mount Land Size	0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD

UCD1H4R7MCL1GS	Nichicon, 4.7µF 50V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UCD	View
UCD1V471MNQ1MS	Nichicon, 470µF 35V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C, UCD	View
UCD2A680MNQ1MS	Nichicon, 68µF 100V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C, UCD	View
UCD1E470MCL1GS	Nichicon, 47µF 25V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UCD	View
UCD1C220MCL1GS	Nichicon, 22µF 16V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UCD	View
UCD1J681MNQ1MS	Nichicon, 680µF 63V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C, UCD	View
UCD1A471MNL1GS	Nichicon, 470µF 10V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C, UCD	View
UCD1V102MNQ1MS	Nichicon, 1000µF 35V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C, UCD	View
UCD1E150MCL1GS	Nichicon, 15µF 25V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UCD	View
UCD1A221MCL1GS	Nichicon, 220µF 10V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UCD	View
UCD1J471MNQ1MS	Nichicon, 470µF 63V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C, UCD	View
UCD1H470MCL1GS	Nichicon, 47µF 50V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UCD	View

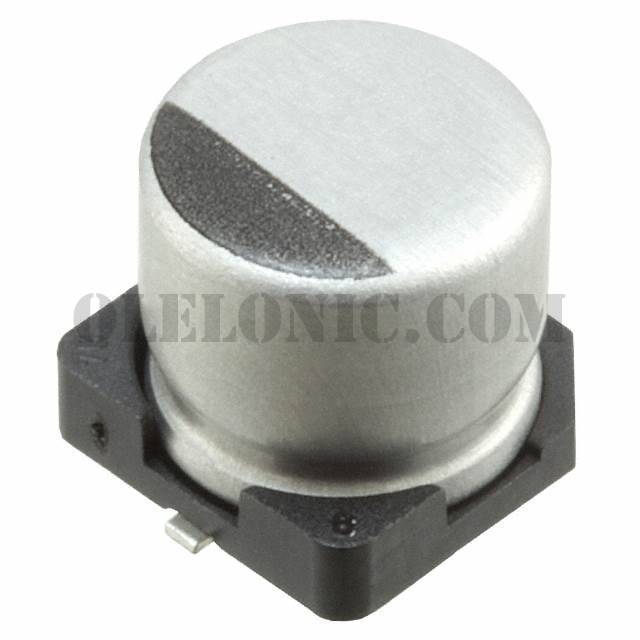

UCD1V470MCL1GS

Part NumberUCD1V470MCL1GS
