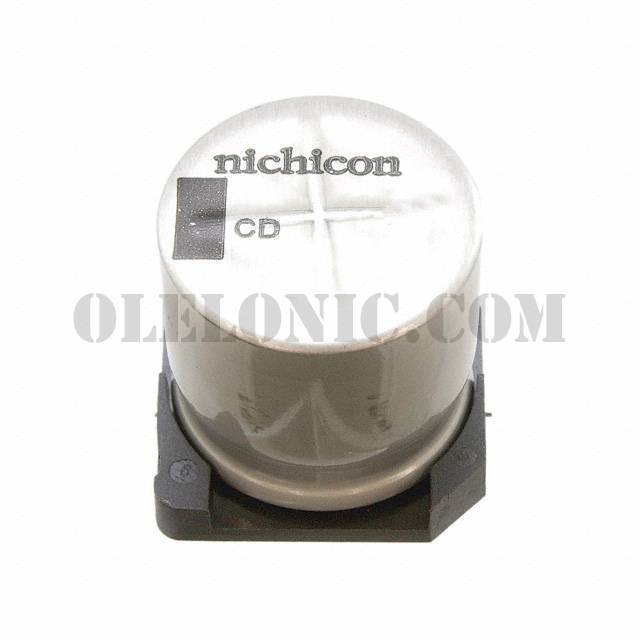

UCD1E222MNQ1MS


UCD1E222MNQ1MS

Part NumberUCD1E222MNQ1MS

Manufacturer

Description

Datasheet

Package / CaseRadial, Can - SMD

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

UCD1E222MNQ1MS - Product Attributes

Categories Capacitors / Aluminum Electrolytic Capacitors
Datasheet
Standard Package1
ManufacturerNichicon
SeriesUCD
PackagingCut Tape (CT)
Part StatusActive
Capacitance2200µF
Tolerance±20%
Voltage - Rated25V
ESR (Equivalent Series Resistance)-
Lifetime @ Temp.5000 Hrs @ 105°C
Operating Temperature-55°C ~ 105°C
PolarizationPolar
RatingsAEC-Q200
ApplicationsAutomotive
Ripple Current @ Low Frequency900mA @ 120Hz
Ripple Current @ High Frequency1.8A @ 100kHz
Impedance35 mOhms
Lead Spacing-
Size / Dimension0.630" Dia (16.00mm)
Height - Seated (Max)0.689" (17.50mm)
Surface Mount Land Size0.673" L x 0.673" W (17.10mm x 17.10mm)
Mounting TypeSurface Mount
Package / CaseRadial, Can - SMD
