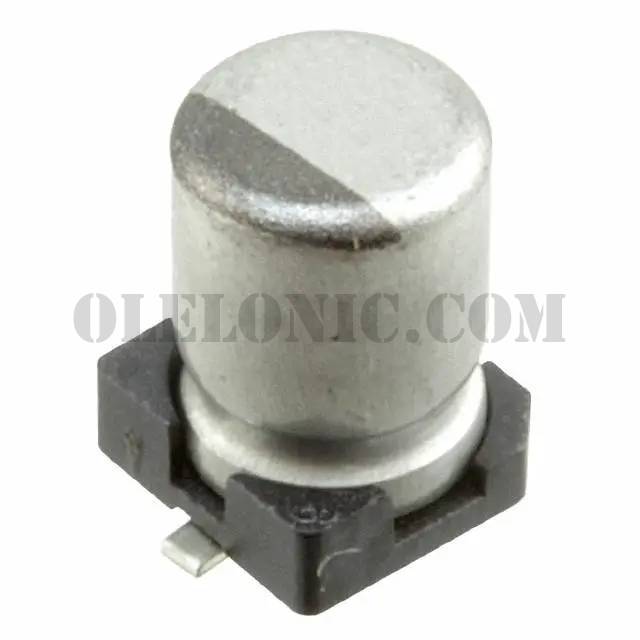

UCD1A220MCL1GS


UCD1A220MCL1GS

Part NumberUCD1A220MCL1GS

Manufacturer

Description

Datasheet

Package / CaseRadial, Can - SMD

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

UCD1A220MCL1GS - Product Attributes

Categories Capacitors / Aluminum Electrolytic Capacitors
Datasheet
Standard Package2000
ManufacturerNichicon
SeriesUCD
PackagingTape & Reel (TR)
Part StatusActive
Capacitance22µF
Tolerance±20%
Voltage - Rated10V
ESR (Equivalent Series Resistance)-
Lifetime @ Temp.2000 Hrs @ 105°C
Operating Temperature-55°C ~ 105°C
PolarizationPolar
RatingsAEC-Q200
ApplicationsAutomotive
Ripple Current @ Low Frequency45mA @ 120Hz
Ripple Current @ High Frequency90mA @ 100kHz
Impedance1.35 Ohms
Lead Spacing-
Size / Dimension0.157" Dia (4.00mm)
Height - Seated (Max)0.240" (6.10mm)
Surface Mount Land Size0.169" L x 0.169" W (4.30mm x 4.30mm)
Mounting TypeSurface Mount
Package / CaseRadial, Can - SMD
