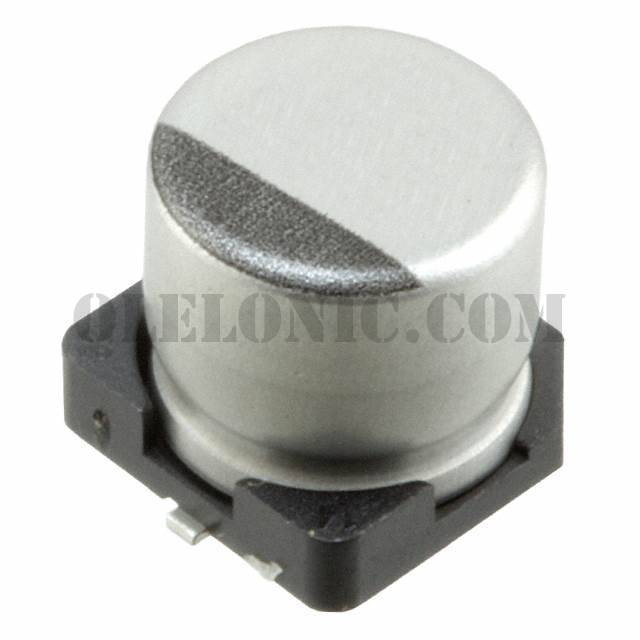

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UCD Series Datasheet
Standard Package	1000
Manufacturer	Nichicon
Series	UCD
Packaging	Tape & Reel (TR)
Part Status	Active
Capacitance	100µF
Tolerance	±20%
Voltage - Rated	6.3V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Polarization	Polar
Ratings	AEC-Q200
Applications	Automotive
Ripple Current @ Low Frequency	120mA @ 120Hz
Ripple Current @ High Frequency	240mA @ 100kHz
Impedance	360 mOhms
Lead Spacing	-
Size / Dimension	0.248" Dia (6.30mm)
Height - Seated (Max)	0.240" (6.10mm)
Surface Mount Land Size	0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD

UCD2A330MNL1GS	Nichicon, 33µF 100V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UCD	View
UCD2A470MNQ1MS	Nichicon, 47µF 100V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C, UCD	View
UCD0J332MNQ1MS	Nichicon, 3300µF 6.3V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C, UCD	View
UCD1K471MNQ1MS	Nichicon, 470µF 80V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C, UCD	View
UCD2A151MNQ1MS	Nichicon, 150µF 100V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C, UCD	View
UCD0J102MNL1GS	Nichicon, 1000µF 6.3V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C, UCD	View
UCD1H470MCL1GS	Nichicon, 47µF 50V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UCD	View
UCD1J330MNL1GS	Nichicon, 33µF 63V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UCD	View
UCD1A331MNL1GS	Nichicon, 330µF 10V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C, UCD	View
UCD1K470MNL1GS	Nichicon, 47µF 80V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UCD	View
UCD1C221MCL1GS	Nichicon, 220µF 16V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UCD	View
UCD1V331MNL1GS	Nichicon, 330µF 35V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C, UCD	View

UCD0J101MCL1GS

Part NumberUCD0J101MCL1GS
