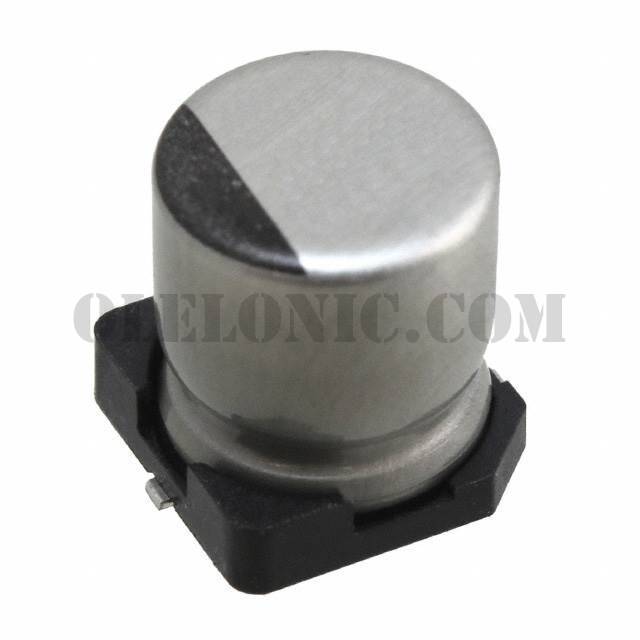

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UCB Series
Standard Package	1
Manufacturer	Nichicon
Series	UCB
Packaging	Cut Tape (CT)
Part Status	Active
Capacitance	100µF
Tolerance	±20%
Voltage - Rated	6.3V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	7000 Hrs @ 105°C
Operating Temperature	-25°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	60mA @ 120Hz
Ripple Current @ High Frequency	90mA @ 10kHz
Lead Spacing	-
Size / Dimension	0.248" Dia (6.30mm)
Height - Seated (Max)	0.287" (7.30mm)
Surface Mount Land Size	0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD

UCB1H470MNL1GS	Nichicon, 47µF 50V Aluminum Electrolytic Capacitors Radial, Can - SMD 7000 Hrs @ 105°C, UCB	View
UCB0J220MCL1GS	Nichicon, 22µF 6.3V Aluminum Electrolytic Capacitors Radial, Can - SMD 7000 Hrs @ 105°C, UCB	View
UCB1V221MNL1GS	Nichicon, 220µF 35V Aluminum Electrolytic Capacitors Radial, Can - SMD 7000 Hrs @ 105°C, UCB	View
UCB0J470MCL1GS	Nichicon, 47µF 6.3V Aluminum Electrolytic Capacitors Radial, Can - SMD 7000 Hrs @ 105°C, UCB	View
UCB1E330MCL1GS	Nichicon, 33µF 25V Aluminum Electrolytic Capacitors Radial, Can - SMD 7000 Hrs @ 105°C, UCB	View
UCB1V2R2MCL1GS	Nichicon, 2.2µF 35V Aluminum Electrolytic Capacitors Radial, Can - SMD 7000 Hrs @ 105°C, UCB	View
UCB1A221MNL1GS	Nichicon, 220µF 10V Aluminum Electrolytic Capacitors Radial, Can - SMD 7000 Hrs @ 105°C, UCB	View
UCB1V010MCL1GS	Nichicon, 1µF 35V Aluminum Electrolytic Capacitors Radial, Can - SMD 7000 Hrs @ 105°C, UCB	View
UCB1H470MNL1GS	Nichicon, 47µF 50V Aluminum Electrolytic Capacitors Radial, Can - SMD 7000 Hrs @ 105°C, UCB	View
UCB1E101MNL1GS	Nichicon, 100µF 25V Aluminum Electrolytic Capacitors Radial, Can - SMD 7000 Hrs @ 105°C, UCB	View
UCB0J331MNL1GS	Nichicon, 330µF 6.3V Aluminum Electrolytic Capacitors Radial, Can - SMD 7000 Hrs @ 105°C, UCB	View
UCB1V220MCL1GS	Nichicon, 22µF 35V Aluminum Electrolytic Capacitors Radial, Can - SMD 7000 Hrs @ 105°C, UCB	View

UCB0J101MCL1GS

Part NumberUCB0J101MCL1GS
