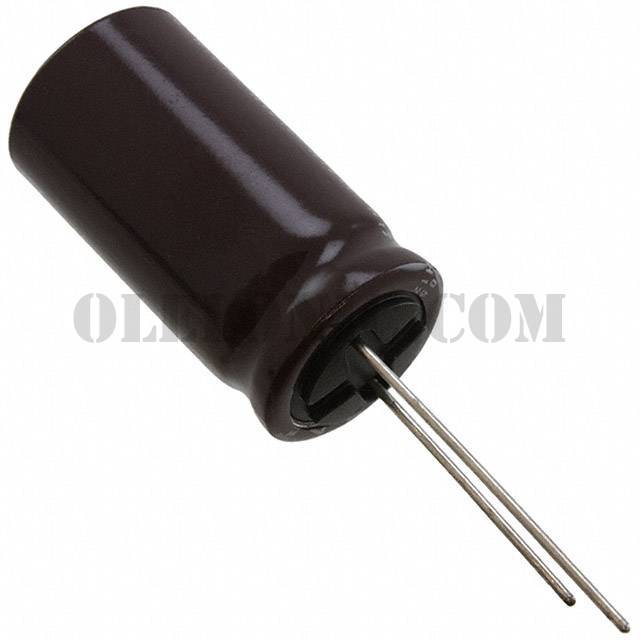

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UCA Series
Standard Package	50
Manufacturer	Nichicon
Series	UCA
Packaging	Bulk
Part Status	Active
Capacitance	100µF
Tolerance	±20%
Voltage - Rated	250V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	12000 Hrs @ 105°C
Operating Temperature	-25°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	700mA @ 120Hz
Ripple Current @ High Frequency	1.4A @ 100kHz
Lead Spacing	0.295" (7.50mm)
Size / Dimension	0.630" Dia (16.00mm)
Height - Seated (Max)	1.299" (33.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UCA2G330MHD	Nichicon, 33µF 400V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, UCA	View
UCA2E470MHD6TN	Nichicon, 47µF 250V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, UCA	View
UCA2E220MHD1TO	Nichicon, 22µF 250V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, UCA	View
UCA2V100MPD1TD	Nichicon, 10µF 350V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UCA	View
UCA2D101MHD6	Nichicon, 100µF 200V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, UCA	View
UCA2D330MHD	Nichicon, 33µF 200V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, UCA	View
UCA2V330MHD1TN	Nichicon, 33µF 350V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, UCA	View
UCA2V220MHD1TO	Nichicon, 22µF 350V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, UCA	View
UCA2C680MHD6TN	Nichicon, 68µF 160V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, UCA	View
UCA2C330MPD1TD	Nichicon, 33µF 160V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UCA	View
UCA2E680MHD1TN	Nichicon, 68µF 250V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, UCA	View
UCA2D680MHD	Nichicon, 68µF 200V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, UCA	View

UCA2E101MHD

Part NumberUCA2E101MHD
