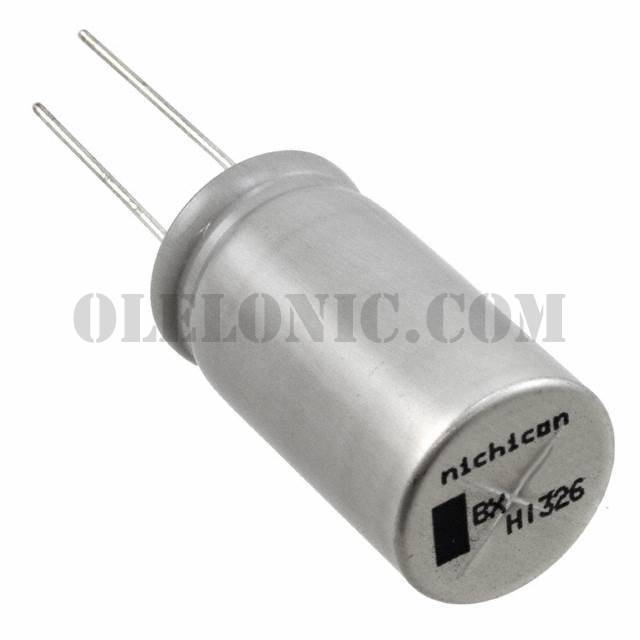

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UBX Series
Standard Package	50
Manufacturer	Nichicon
Series	UBX
Packaging	Bulk
Part Status	Active
Capacitance	2200µF
Tolerance	±20%
Voltage - Rated	10V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 150°C
Operating Temperature	-55°C ~ 150°C
Polarization	Polar
Ratings	-
Applications	Automotive
Ripple Current @ Low Frequency	670mA @ 120Hz
Ripple Current @ High Frequency	1A @ 100kHz
Lead Spacing	0.295" (7.50mm)
Size / Dimension	0.630" Dia (16.00mm)
Height - Seated (Max)	1.299" (33.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UBX1H221MPL1TD	Nichicon, 220µF 50V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 150°C, UBX	View
UBX1J561MHL	Nichicon, 560µF 63V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 150°C, UBX	View
UBX2V150MHL1TO	Nichicon, 15µF 350V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 150°C, UBX	View
UBX2V100MHL1TO	Nichicon, 10µF 350V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 150°C, UBX	View
UBX1H331MHL1TO	Nichicon, 330µF 50V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 150°C, UBX	View
UBX1E101MPL1TD	Nichicon, 100µF 25V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 150°C, UBX	View
UBX2C560MHL1TO	Nichicon, 56µF 160V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 150°C, UBX	View
UBX2C680MHL1TN	Nichicon, 68µF 160V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 150°C, UBX	View
UBX2D6R8MPL1TD	Nichicon, 6.8µF 200V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 150°C, UBX	View
UBX1V220MPL1TD	Nichicon, 22µF 35V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 150°C, UBX	View
UBX2A331MHL	Nichicon, 330µF 100V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 150°C, UBX	View
UBX2D680MHL1TN	Nichicon, 68µF 200V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 150°C, UBX	View

UBX1A222MHL

Part NumberUBX1A222MHL
