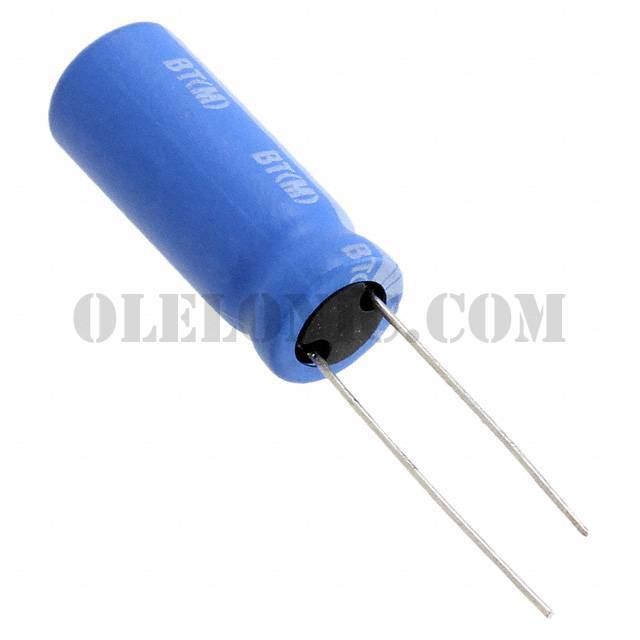

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UBT Series
Standard Package	500
Manufacturer	Nichicon
Series	UBT
Packaging	Tape & Box (TB)
Part Status	Active
Capacitance	4.7µF
Tolerance	±20%
Voltage - Rated	450V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 125°C
Operating Temperature	-25°C ~ 125°C
Polarization	Polar
Ratings	-
Applications	Automotive
Ripple Current @ Low Frequency	58mA @ 120Hz
Ripple Current @ High Frequency	104.4mA @ 100kHz
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	1.063" (27.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
