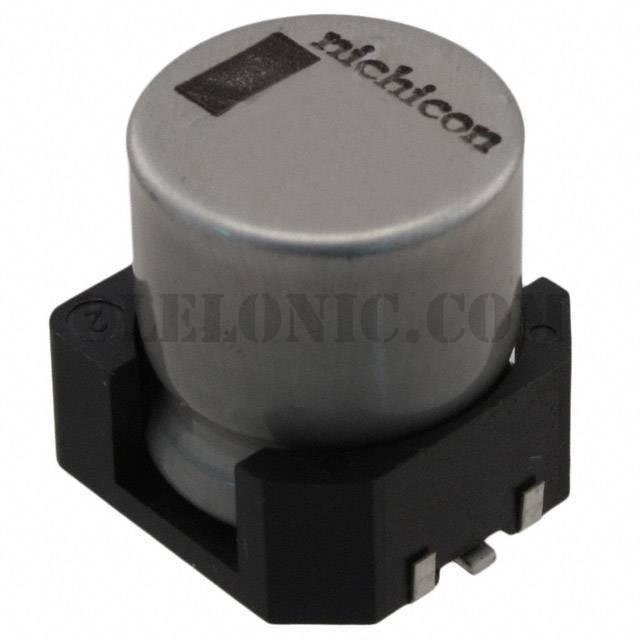

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UBC Series
Standard Package	1
Manufacturer	Nichicon
Series	UBC
Packaging	Cut Tape (CT)
Part Status	Active
Capacitance	220µF
Tolerance	±20%
Voltage - Rated	35V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	1000 Hrs @ 150°C
Operating Temperature	-55°C ~ 150°C
Polarization	Polar
Ratings	-
Applications	Automotive
Ripple Current @ Low Frequency	368.5mA @ 120Hz
Ripple Current @ High Frequency	550mA @ 100kHz
Lead Spacing	-
Size / Dimension	0.492" Dia (12.50mm)
Height - Seated (Max)	0.571" (14.50mm)
Surface Mount Land Size	0.535" L x 0.535" W (13.60mm x 13.60mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD

UBC1V101MNS1GS	Nichicon, 100µF 35V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 150°C, UBC	View
UBC1C221MNS1GS	Nichicon, 220µF 16V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 150°C, UBC	View
UBC1C102MNS1MS	Nichicon, 1000µF 16V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 150°C, UBC	View
UBC1C102MNS1MS	Nichicon, 1000µF 16V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 150°C, UBC	View
UBC1A221MNS1GS	Nichicon, 220µF 10V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 150°C, UBC	View
UBC1A102MNS1MS	Nichicon, 1000µF 10V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 150°C, UBC	View
UBC1V221MNS1MS	Nichicon, 220µF 35V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 150°C, UBC	View
UBC1A102MNS1MS	Nichicon, 1000µF 10V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 150°C, UBC	View
UBC1H470MNS1GS	Nichicon, 47µF 50V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 150°C, UBC	View
UBC1A332MNS1MS	Nichicon, 3300µF 10V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 150°C, UBC	View
UBC1E221MNS1GS	Nichicon, 220µF 25V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 150°C, UBC	View
UBC1E471MNS1MS	Nichicon, 470µF 25V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 150°C, UBC	View

UBC1V221MNS1MS

Part NumberUBC1V221MNS1MS
