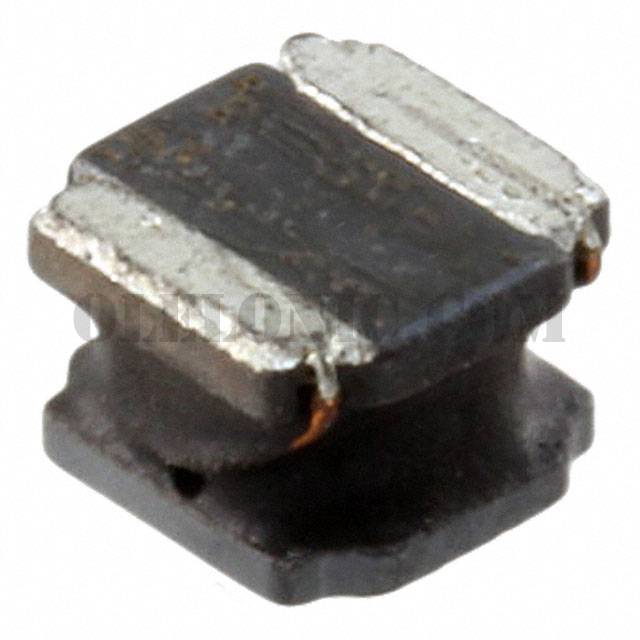

TYS4030100M-10

Part NumberTYS4030100M-10

ManufacturerLaird-Signal Integrity Products

DescriptionFIXED IND 10UH 1.5A 130 MOHM SMD

DatasheetTYS4030100M-10 Drawing

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description10µH Shielded Wirewound Inductor 1.5A 130mOhm Max Nonstandard

To learn about the specification of TYS4030100M-10, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add TYS4030100M-10 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of TYS4030100M-10.
We are offering TYS4030100M-10 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

TYS4030100M-10 - Product Attributes

Categories

Inductors, Coils, Chokes / Fixed Inductors

Datasheet

TYS4030100M-10 Drawing

Standard Package

2000

Manufacturer

Laird-Signal Integrity Products

Series

TYS4030

Packaging

Tape & Reel (TR)

Part Status

Active

Type

Wirewound

Material - Core

Inductance

10µH

Tolerance

±20%

Current Rating (Amps)

1.5A

Current - Saturation

1.95A

Shielding

Shielded

DC Resistance (DCR)

130mOhm Max

Q @ Freq

Frequency - Self Resonant

21MHz

Ratings

Operating Temperature

-40°C ~ 125°C

Inductance Frequency - Test

100kHz

Mounting Type

Surface Mount

Package / Case

Nonstandard

Supplier Device Package

Size / Dimension

0.157" L x 0.157" W (4.00mm x 4.00mm)

Height - Seated (Max)

0.118" (3.00mm)
