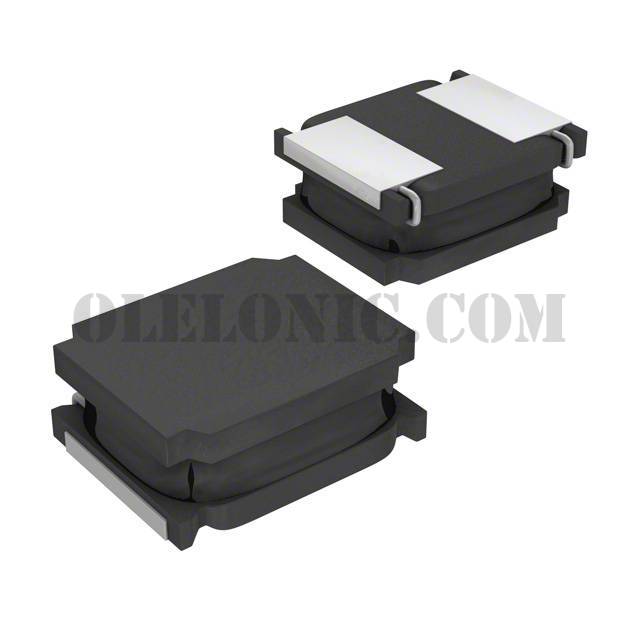

TYS252012L1R0N-10


TYS252012L1R0N-10

Part NumberTYS252012L1R0N-10

Manufacturer

Description

Datasheet

Package / Case1008 (2520 Metric)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

TYS252012L1R0N-10 - Product Attributes

Categories Inductors, Coils, Chokes / Fixed Inductors
Datasheet
Standard Package1
ManufacturerLaird-Signal Integrity Products
SeriesTYS252012L
PackagingCut Tape (CT)
Part StatusActive
Type-
Material - Core-
Inductance1µH
Tolerance±30%
Current Rating (Amps)1.93A
Current - Saturation2.59A
ShieldingShielded
DC Resistance (DCR)83mOhm Max
Q @ Freq-
Frequency - Self Resonant110MHz
Ratings-
Operating Temperature-40°C ~ 125°C
Inductance Frequency - Test100kHz
Mounting TypeSurface Mount
Package / Case1008 (2520 Metric)
Supplier Device Package1008 (2520 Metric)
Size / Dimension0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max)0.039" (1.00mm)
