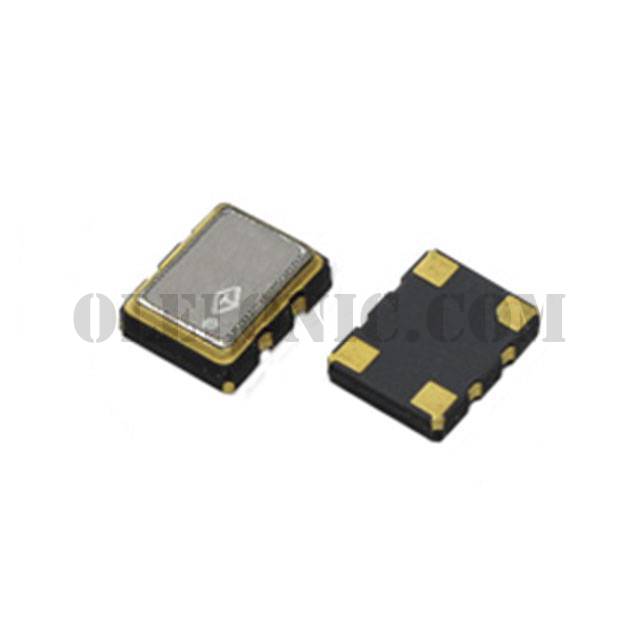

Categories	Crystals, Oscillators, Resonators / Oscillators
Datasheet	TX Series Datasheet
Standard Package	500
Manufacturer	Taitien
Series	TX
Packaging	Tape & Reel (TR)
Part Status	Active
Base Resonator	Crystal
Type	TCXO
Frequency	10MHz
Function	-
Output	Clipped Sine Wave
Voltage - Supply	2.8V ~ 3.3V
Frequency Stability	±500ppb
Absolute Pull Range (APR)	-
Operating Temperature	-40°C ~ 85°C
Current - Supply (Max)	2mA
Ratings	-
Mounting Type	Surface Mount
Package / Case	4-SMD, No Lead
Size / Dimension	0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max)	0.039" (1.00mm)
Current - Supply (Disable) (Max)	-

TXETDDSANF-16.000000	Taitien, 16MHz TCXO Clipped Sine Wave Oscillator 2.8V ~ 3.3V 4-SMD, No Lead, TX	View
TXETADSANF-16.367667	Taitien, 16.367667MHz TCXO Clipped Sine Wave Oscillator 2.8V ~ 3.3V 4-SMD, No Lead, TX	View
TXEAACSANF-40.000000	Taitien, 40MHz VCTCXO Clipped Sine Wave Oscillator 2.8V ~ 3.3V 4-SMD, No Lead, TX	View
TXJTPDSANF-14.745600	Taitien, 14.7456MHz TCXO Clipped Sine Wave Oscillator 2.5V 4-SMD, No Lead, TX	View
TXEACDSANF-12.288000	Taitien, 12.288MHz VCTCXO Clipped Sine Wave Oscillator 2.8V ~ 3.3V 4-SMD, No Lead, TX	View
TXETBCSANF-12.800000	Taitien, 12.8MHz TCXO Clipped Sine Wave Oscillator 2.8V ~ 3.3V 4-SMD, No Lead, TX	View
TXETDDSANF-10.000000	Taitien, 10MHz TCXO Clipped Sine Wave Oscillator 2.8V ~ 3.3V 4-SMD, No Lead, TX	View
TXETDDSANF-12.800000	Taitien, 12.8MHz TCXO Clipped Sine Wave Oscillator 2.8V ~ 3.3V 4-SMD, No Lead, TX	View
TXETDDSANF-19.200000	Taitien, 19.2MHz TCXO Clipped Sine Wave Oscillator 2.8V ~ 3.3V 4-SMD, No Lead, TX	View
TXEACDSANF-12.288000	Taitien, 12.288MHz VCTCXO Clipped Sine Wave Oscillator 2.8V ~ 3.3V 4-SMD, No Lead, TX	View
TXETADSANF-33.600000	Taitien, 33.6MHz TCXO Clipped Sine Wave Oscillator 2.8V ~ 3.3V 4-SMD, No Lead, TX	View
TXEAPDSANF-19.200000	Taitien, 19.2MHz VCTCXO Clipped Sine Wave Oscillator 2.8V ~ 3.3V 4-SMD, No Lead, TX	View

TXETALSANF-10.000000

Part NumberTXETALSANF-10.000000
