Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	TVX Series Datasheet
Standard Package	50
Manufacturer	Nichicon
Series	TVX
Packaging	Bulk
Part Status	Active
Capacitance	33µF
Tolerance	±20%
Voltage - Rated	400V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 85°C
Operating Temperature	-25°C ~ 85°C
Polarization	-
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	210mA @ 120Hz
Ripple Current @ High Frequency	336mA @ 10kHz
Lead Spacing	-
Size / Dimension	0.630" Dia x 1.713" L (16.00mm x 43.50mm)
Height - Seated (Max)	-
Surface Mount Land Size	-
Mounting Type	Through Hole

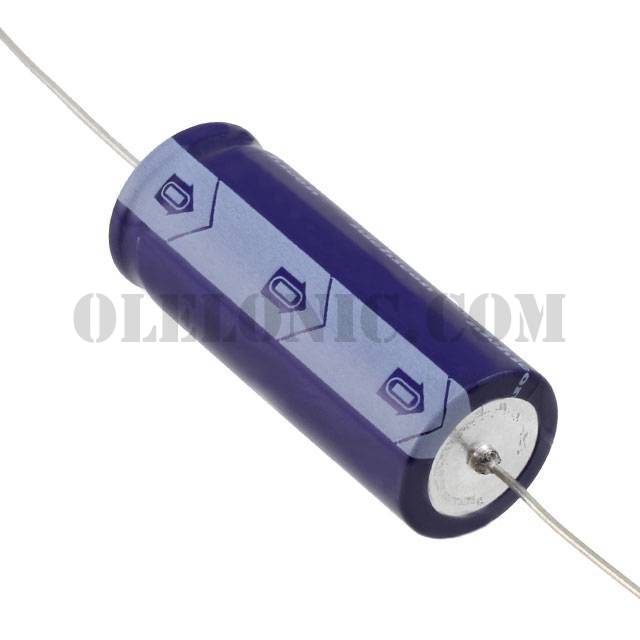

Package / Case	Axial, Can

TVX1H3R3MAD1LS	Nichicon, 3.3µF 50V Aluminum Electrolytic Capacitors Axial, Can 2000 Hrs @ 85°C, TVX	View
TVX1E470MAD1LS	Nichicon, 47µF 25V Aluminum Electrolytic Capacitors Axial, Can 2000 Hrs @ 85°C, TVX	View
TVX2D2R2MAD	Nichicon, 2.2µF 200V Aluminum Electrolytic Capacitors Axial, Can 2000 Hrs @ 85°C, TVX	View
TVX2V330MCD	Nichicon, 33µF 350V Aluminum Electrolytic Capacitors Axial, Can 2000 Hrs @ 85°C, TVX	View
TVX1H470MAD	Nichicon, 47µF 50V Aluminum Electrolytic Capacitors Axial, Can 2000 Hrs @ 85°C, TVX	View
TVX2V4R7MCD	Nichicon, 4.7µF 350V Aluminum Electrolytic Capacitors Axial, Can 2000 Hrs @ 85°C, TVX	View
TVX1C100MAD1LS	Nichicon, 10µF 16V Aluminum Electrolytic Capacitors Axial, Can 2000 Hrs @ 85°C, TVX	View
TVX2V100MCD	Nichicon, 10µF 350V Aluminum Electrolytic Capacitors Axial, Can 2000 Hrs @ 85°C, TVX	View
TVX1A470MAD1LS	Nichicon, 47µF 10V Aluminum Electrolytic Capacitors Axial, Can 2000 Hrs @ 85°C, TVX	View
TVX1V101MAD1LS	Nichicon, 100µF 35V Aluminum Electrolytic Capacitors Axial, Can 2000 Hrs @ 85°C, TVX	View
TVX2E4R7MAD	Nichicon, 4.7µF 250V Aluminum Electrolytic Capacitors Axial, Can 2000 Hrs @ 85°C, TVX	View
TVX1C470MAD1LS	Nichicon, 47µF 16V Aluminum Electrolytic Capacitors Axial, Can 2000 Hrs @ 85°C, TVX	View

TVX2G330MCD

Part NumberTVX2G330MCD
