Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	TVX Series Datasheet
Standard Package	1
Manufacturer	Nichicon
Series	TVX
Packaging	Cut Tape (CT)
Part Status	Active
Capacitance	220µF
Tolerance	±20%
Voltage - Rated	50V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 85°C
Operating Temperature	-40°C ~ 85°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	410mA @ 120Hz
Lead Spacing	-
Size / Dimension	0.394" Dia x 0.827" L (10.00mm x 21.00mm)
Height - Seated (Max)	-
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Axial, Can

TVX1C100MAD1LS	Nichicon, 10µF 16V Aluminum Electrolytic Capacitors Axial, Can 2000 Hrs @ 85°C, TVX	View
TVX1E220MAD1LS	Nichicon, 22µF 25V Aluminum Electrolytic Capacitors Axial, Can 2000 Hrs @ 85°C, TVX	View
TVX1V332MCD	Nichicon, 3300µF 35V Aluminum Electrolytic Capacitors Axial, Can 2000 Hrs @ 85°C, TVX	View
TVX2W010MAD1LS	Nichicon, 1µF 450V Aluminum Electrolytic Capacitors Axial, Can 2000 Hrs @ 85°C, TVX	View
TVX2A221MCD	Nichicon, 220µF 100V Aluminum Electrolytic Capacitors Axial, Can 2000 Hrs @ 85°C, TVX	View
TVX0J102MCD	Nichicon, 1000µF 6.3V Aluminum Electrolytic Capacitors Axial, Can 2000 Hrs @ 85°C, TVX	View
TVX1A101MAD1LS	Nichicon, 100µF 10V Aluminum Electrolytic Capacitors Axial, Can 2000 Hrs @ 85°C, TVX	View
TVX2C220MCD	Nichicon, 22µF 160V Aluminum Electrolytic Capacitors Axial, Can 2000 Hrs @ 85°C, TVX	View
TVX0J471MAD1LV	Nichicon, 470µF 6.3V Aluminum Electrolytic Capacitors Axial, Can 2000 Hrs @ 85°C, TVX	View
TVX2V3R3MAD	Nichicon, 3.3µF 350V Aluminum Electrolytic Capacitors Axial, Can 2000 Hrs @ 85°C, TVX	View
TVX2A101MCD1LT	Nichicon, 100µF 100V Aluminum Electrolytic Capacitors Axial, Can 2000 Hrs @ 85°C, TVX	View
TVX0J331MAD	Nichicon, 330µF 6.3V Aluminum Electrolytic Capacitors Axial, Can 2000 Hrs @ 85°C, TVX	View

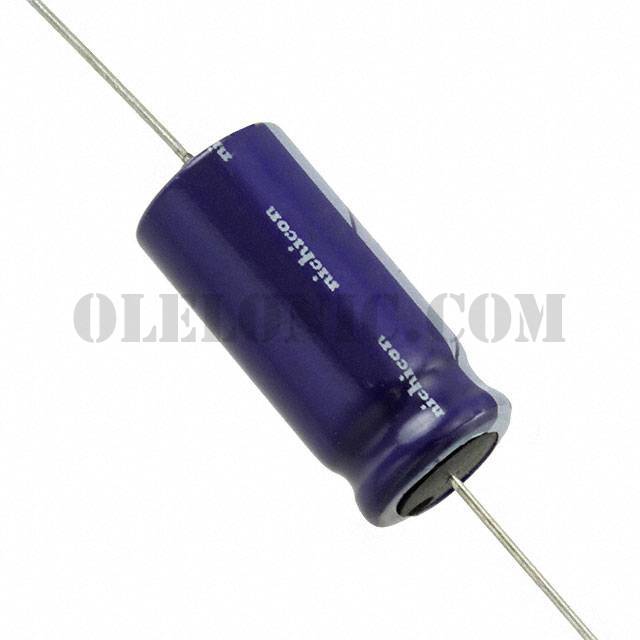

TVX1H221MCD1LT

Part NumberTVX1H221MCD1LT
