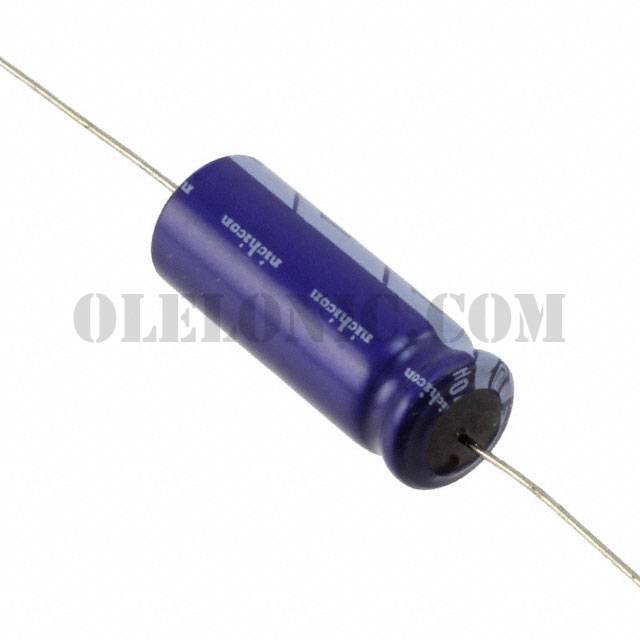

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	TVX Series Datasheet
Standard Package	500
Manufacturer	Nichicon
Series	TVX
Packaging	Tape & Reel (TR)
Part Status	Active
Capacitance	1000µF
Tolerance	±20%
Voltage - Rated	16V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 85°C
Operating Temperature	-40°C ~ 85°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	770mA @ 120Hz
Ripple Current @ High Frequency	885.5mA @ 10kHz
Lead Spacing	-
Size / Dimension	0.394" Dia x 1.024" L (10.00mm x 26.00mm)
Height - Seated (Max)	-
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Axial, Can
