Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	TVX Series Datasheet
Standard Package	1600
Manufacturer	Nichicon
Series	TVX
Packaging	Tape & Reel (TR)
Part Status	Active
Capacitance	10µF
Tolerance	±20%
Voltage - Rated	16V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 85°C
Operating Temperature	-40°C ~ 85°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Lead Spacing	-
Size / Dimension	0.248" Dia x 0.630" L (6.30mm x 16.00mm)
Height - Seated (Max)	-
Surface Mount Land Size	-

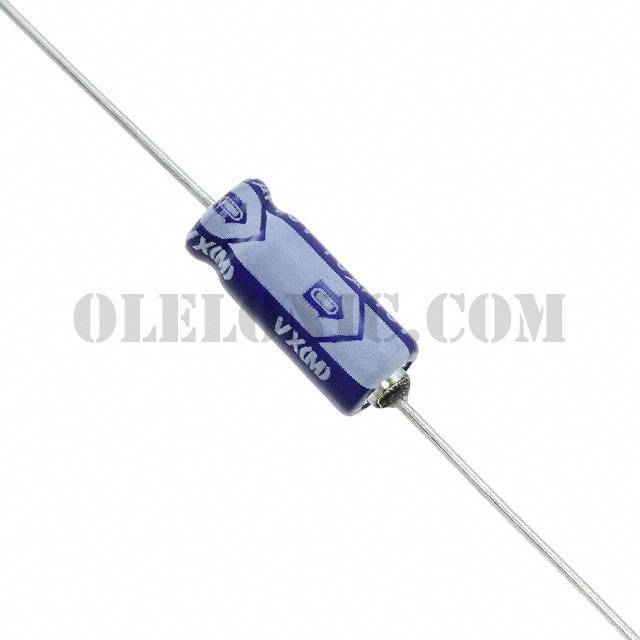

Mounting Type	Through Hole
Package / Case	Axial, Can

TVX1J470MAD	Nichicon, 47µF 63V Aluminum Electrolytic Capacitors Axial, Can 2000 Hrs @ 85°C, TVX	View
TVX1V101MAD1LS	Nichicon, 100µF 35V Aluminum Electrolytic Capacitors Axial, Can 2000 Hrs @ 85°C, TVX	View
TVX2A330MAD1LS	Nichicon, 33µF 100V Aluminum Electrolytic Capacitors Axial, Can 2000 Hrs @ 85°C, TVX	View
TVX1H101MAD1LV	Nichicon, 100µF 50V Aluminum Electrolytic Capacitors Axial, Can 2000 Hrs @ 85°C, TVX	View
TVX1C102MCD1LT	Nichicon, 1000µF 16V Aluminum Electrolytic Capacitors Axial, Can 2000 Hrs @ 85°C, TVX	View
TVX1A101MAD1LS	Nichicon, 100µF 10V Aluminum Electrolytic Capacitors Axial, Can 2000 Hrs @ 85°C, TVX	View
TVX1V100MAD	Nichicon, 10µF 35V Aluminum Electrolytic Capacitors Axial, Can 2000 Hrs @ 85°C, TVX	View
TVX1C682MCD	Nichicon, 6800µF 16V Aluminum Electrolytic Capacitors Axial, Can 2000 Hrs @ 85°C, TVX	View
TVX1C223MDD	Nichicon, 22000µF 16V Aluminum Electrolytic Capacitors Axial, Can 2000 Hrs @ 85°C, TVX	View
TVX1H470MAD1LV	Nichicon, 47µF 50V Aluminum Electrolytic Capacitors Axial, Can 2000 Hrs @ 85°C, TVX	View
TVX2D100MCD	Nichicon, 10µF 200V Aluminum Electrolytic Capacitors Axial, Can 2000 Hrs @ 85°C, TVX	View
TVX1C102MCD1LT	Nichicon, 1000µF 16V Aluminum Electrolytic Capacitors Axial, Can 2000 Hrs @ 85°C, TVX	View

TVX1C100MAD1LS

Part NumberTVX1C100MAD1LS
