Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	TVX Series Datasheet
Standard Package	500
Manufacturer	Nichicon
Series	TVX
Packaging	Bulk
Part Status	Active
Capacitance	220µF
Tolerance	±20%
Voltage - Rated	6.3V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 85°C
Operating Temperature	-40°C ~ 85°C
Polarization	-
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	200mA @ 120Hz
Ripple Current @ High Frequency	300mA @ 10kHz
Lead Spacing	-
Size / Dimension	0.248" Dia x 0.669" L (6.30mm x 17.00mm)
Height - Seated (Max)	-
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Axial, Can

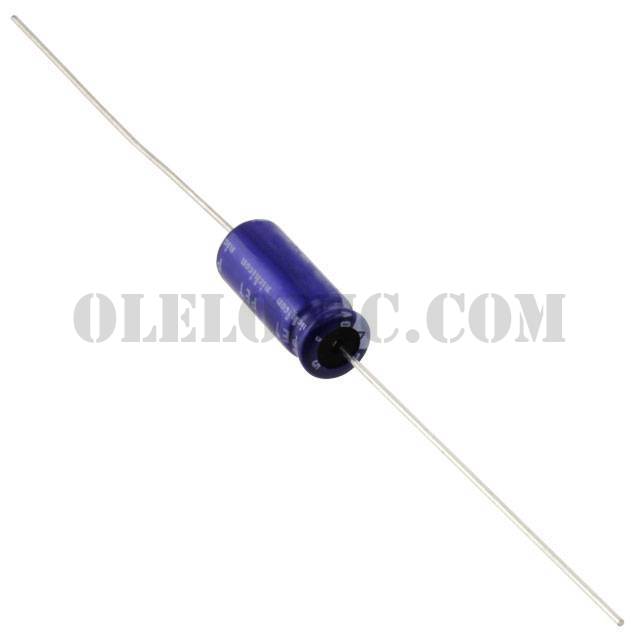

TVX0J221MAD	Nichicon, 220µF 6.3V Aluminum Electrolytic Capacitors Axial, Can 2000 Hrs @ 85°C, TVX	View
TVX1H101MAD1LS	Nichicon, 100µF 50V Aluminum Electrolytic Capacitors Axial, Can 2000 Hrs @ 85°C, TVX	View
TVX1C470MAD1LS	Nichicon, 47µF 16V Aluminum Electrolytic Capacitors Axial, Can 2000 Hrs @ 85°C, TVX	View
TVX1E101MAD1LS	Nichicon, 100µF 25V Aluminum Electrolytic Capacitors Axial, Can 2000 Hrs @ 85°C, TVX	View
TVX1E330MAD	Nichicon, 33µF 25V Aluminum Electrolytic Capacitors Axial, Can 2000 Hrs @ 85°C, TVX	View
TVX2W010MAD	Nichicon, 1µF 450V Aluminum Electrolytic Capacitors Axial, Can 2000 Hrs @ 85°C, TVX	View
TVX1V101MAD	Nichicon, 100µF 35V Aluminum Electrolytic Capacitors Axial, Can 2000 Hrs @ 85°C, TVX	View
TVX1C682MCD	Nichicon, 6800µF 16V Aluminum Electrolytic Capacitors Axial, Can 2000 Hrs @ 85°C, TVX	View
TVX2G2R2MAD	Nichicon, 2.2µF 400V Aluminum Electrolytic Capacitors Axial, Can 2000 Hrs @ 85°C, TVX	View
TVX1H472MDD	Nichicon, 4700µF 50V Aluminum Electrolytic Capacitors Axial, Can 2000 Hrs @ 85°C, TVX	View
TVX1C471MAD1LS	Nichicon, 470µF 16V Aluminum Electrolytic Capacitors Axial, Can 2000 Hrs @ 85°C, TVX	View
TVX1C101MAD1LS	Nichicon, 100µF 16V Aluminum Electrolytic Capacitors Axial, Can 2000 Hrs @ 85°C, TVX	View

TVX0J221MAD

Part NumberTVX0J221MAD
