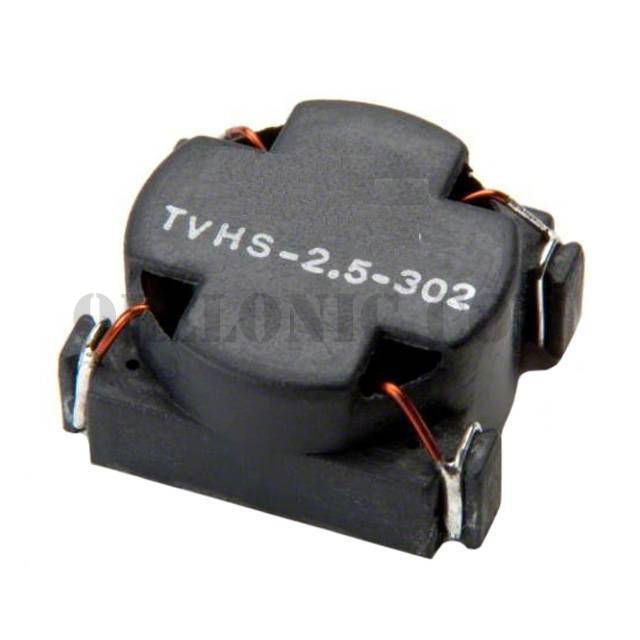

TVHS-2.5-302

Part NumberTVHS-2.5-302

ManufacturerAmgis, LLC

DescriptionCMC 3MH 2.5A 2LN SMD

DatasheetTVH Series

Package / CaseHorizontal, 4 PC Pad

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description3mH @ 10kHz 2 Line Common Mode Choke Surface Mount 2.5A DCR 80mOhm

To learn about the specification of TVHS-2.5-302, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add TVHS-2.5-302 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of TVHS-2.5-302.
We are offering TVHS-2.5-302 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

TVHS-2.5-302 - Product Attributes

Categories

Filters / Common Mode Chokes

Datasheet

TVH Series

Standard Package

220

Manufacturer

Amgis, LLC

Series

TVH

Packaging

Tape & Reel (TR)

Part Status

Active

Filter Type

Number of Lines

Inductance @ Frequency

3mH @ 10kHz

Current Rating (Max)

2.5A

DC Resistance (DCR) (Max)

80mOhm

Voltage Rating - DC

Voltage Rating - AC

1500V (1.5kV)

Operating Temperature

-40°C ~ 125°C

Ratings

Approvals

Features

Mounting Type

Surface Mount

Size / Dimension

0.760" L x 0.662" W (19.31mm x 16.82mm)

Height (Max)

0.390" (9.90mm)

Package / Case

Horizontal, 4 PC Pad
