Categories	Crystals, Oscillators, Resonators / Oscillators
Datasheet	TT Series High Precision
Standard Package	100
Manufacturer	Taitien
Series	TT
Packaging	Strip
Part Status	Active
Base Resonator	Crystal
Type	VCTCXO
Frequency	10MHz
Function	-
Output	Clipped Sine Wave
Voltage - Supply	3.3V
Frequency Stability	±100ppb
Absolute Pull Range (APR)	-
Operating Temperature	-20°C ~ 70°C
Current - Supply (Max)	3.5mA
Ratings	-
Mounting Type	Surface Mount
Package / Case	4-SMD, No Lead Exposed Pad
Size / Dimension	0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Max)	0.083" (2.10mm)
Current - Supply (Disable) (Max)	-

TTCAMCSANF-12.800000	Taitien, 12.8MHz VCTCXO Clipped Sine Wave Oscillator 5V 4-SMD, No Lead Exposed Pad, TT	View
TTCATLJANF-10.000000	Taitien, 10MHz VCTCXO CMOS Oscillator 5V 4-SMD, No Lead Exposed Pad, TT	View
TTEATCJANF-20.480000	Taitien, 20.48MHz VCTCXO CMOS Oscillator 3.3V 4-SMD, No Lead Exposed Pad, TT	View
TTETTCJANF-12.800000	Taitien, 12.8MHz TCXO CMOS Oscillator 3.3V 4-SMD, No Lead Exposed Pad, TT	View
TTETTLJANF-16.384000	Taitien, 16.384MHz TCXO CMOS Oscillator 3.3V 4-SMD, No Lead Exposed Pad, TT	View
TTEAALSANF-10.000000	Taitien, 10MHz VCTCXO Clipped Sine Wave Oscillator 3.3V 4-SMD, No Lead Exposed Pad, TT	View
TTCABLSANF-13.000000	Taitien, 13MHz VCTCXO Clipped Sine Wave Oscillator 5V 4-SMD, No Lead Exposed Pad, TT	View
TTEAALJANF-20.000000	Taitien, 20MHz VCTCXO CMOS Oscillator 3.3V 4-SMD, No Lead Exposed Pad, TT	View
TTEATLJANF-40.000000	Taitien, 40MHz VCTCXO CMOS Oscillator 3.3V 4-SMD, No Lead Exposed Pad, TT	View
TTEAMCSANF-10.000000	Taitien, 10MHz VCTCXO Clipped Sine Wave Oscillator 3.3V 4-SMD, No Lead Exposed Pad, TT	View
TTEAALSANF-50.000000	Taitien, 50MHz VCTCXO Clipped Sine Wave Oscillator 3.3V 4-SMD, No Lead Exposed Pad, TT	View
TTETKLSANF-10.000000	Taitien, 10MHz TCXO Clipped Sine Wave Oscillator 3.3V 4-SMD, No Lead Exposed Pad, TT	View

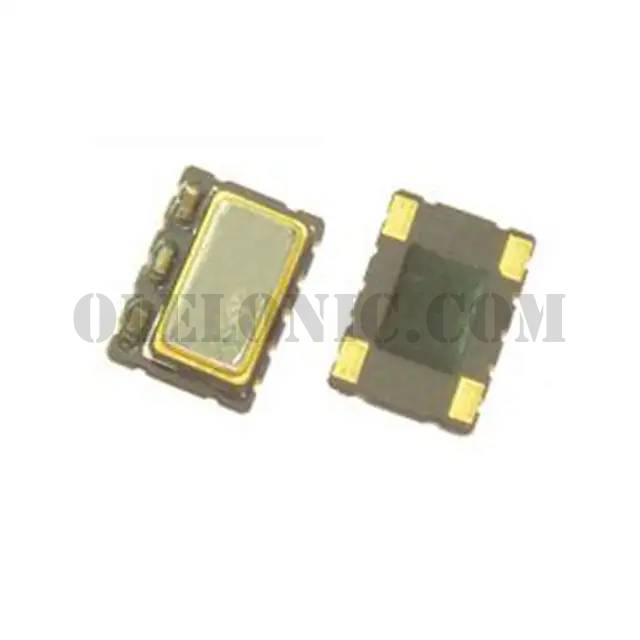

TTEAMCSANF-10.000000

Part NumberTTEAMCSANF-10.000000
