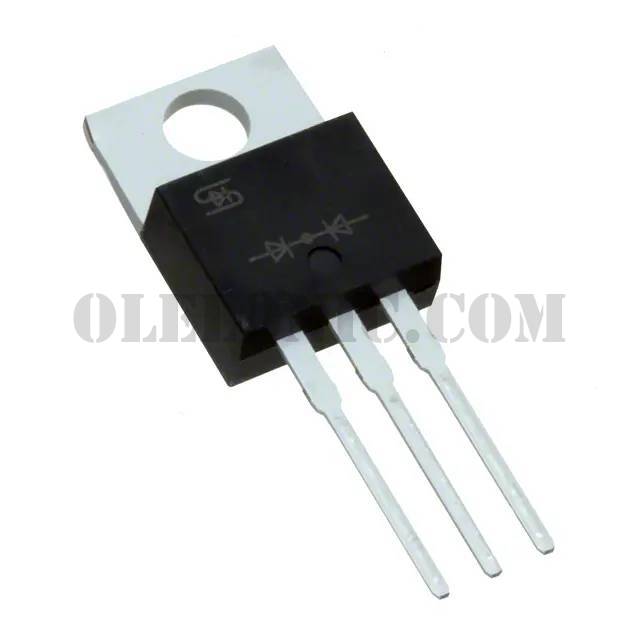

TST20H300CW C0G

Part NumberTST20H300CW C0G

ManufacturerTaiwan Semiconductor Corporation

DescriptionDIODE

DatasheetTST20H300CW

Package / CaseTO-220-3

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Array 1 Pair Common Cathode Schottky 300V 10A Through Hole TO-220-3

To learn about the specification of TST20H300CW C0G, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add TST20H300CW C0G with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of TST20H300CW C0G.
We are offering TST20H300CW C0G for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

TST20H300CW C0G - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Arrays
Datasheet	TST20H300CW
Standard Package	2000
Manufacturer	Taiwan Semiconductor Corporation
Series	-
Part Status	Active
Diode Configuration	1 Pair Common Cathode
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	300V
Current - Average Rectified (Io) (per Diode)	10A
Voltage - Forward (Vf) (Max) @ If	980mV @ 10A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr	100µA @ 300V
Operating Temperature - Junction	-55°C ~ 150°C
Mounting Type	Through Hole
Package / Case	TO-220-3
Supplier Device Package	TO-220AB
