TSM60NB190CM2 RNG

TSM60NB190CM2 RNG

Part NumberTSM60NB190CM2 RNG

ManufacturerTaiwan Semiconductor Corporation

DescriptionMOSFET N-CH 600V 18A TO263

DatasheetTSM60NB190CM2

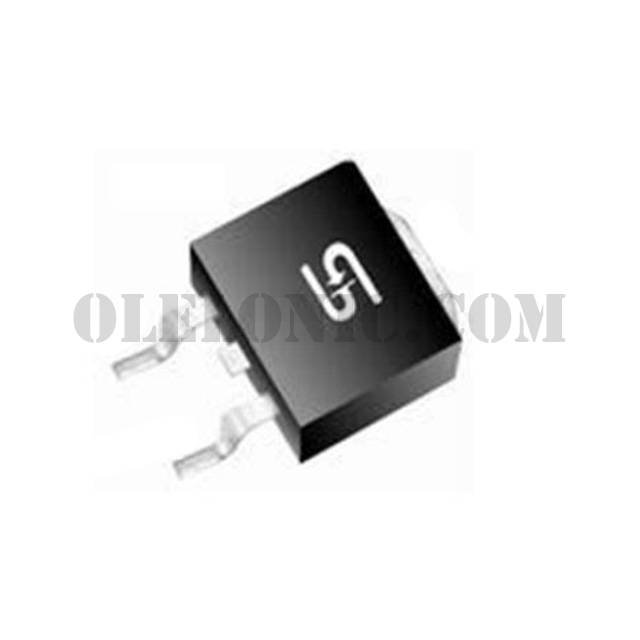

Package / CaseTO-263-3, D²Pak (2 Leads + Tab), TO-263AB

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 600V 18A (Tc) 150.6W (Tc) Surface Mount TO-263 (D²Pak)

To learn about the specification of TSM60NB190CM2 RNG, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add TSM60NB190CM2 RNG with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of TSM60NB190CM2 RNG.
We are offering TSM60NB190CM2 RNG for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

TSM60NB190CM2 RNG - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	TSM60NB190CM2
Standard Package	1
Manufacturer	Taiwan Semiconductor Corporation
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	600V
Current - Continuous Drain (Id) @ 25°C	18A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	190mOhm @ 6A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	31nC @ 10V
Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	1273pF @ 100V
FET Feature	-
Power Dissipation (Max)	150.6W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	TO-263 (D²Pak)
Package / Case	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
