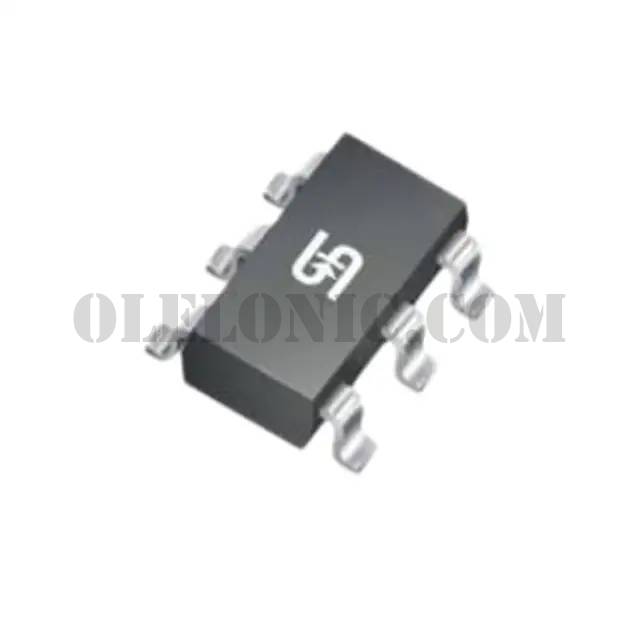

TSM3481CX6 RFG

TSM3481CX6 RFG

Part NumberTSM3481CX6 RFG

ManufacturerTaiwan Semiconductor Corporation

DescriptionMOSFET P-CHANNEL 30V 5.7A SOT26

DatasheetTSM3481

Package / CaseSOT-23-6

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionP-Channel 30V 5.7A (Ta) 1.6W (Ta) Surface Mount SOT-26

To learn about the specification of TSM3481CX6 RFG, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add TSM3481CX6 RFG with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of TSM3481CX6 RFG.
We are offering TSM3481CX6 RFG for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

TSM3481CX6 RFG - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	TSM3481
Standard Package	1
Manufacturer	Taiwan Semiconductor Corporation
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	5.7A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	48mOhm @ 5.3A, 10V
Vgs(th) (Max) @ Id	3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	18.09nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	1047.98pF @ 15V
FET Feature	-
Power Dissipation (Max)	1.6W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	SOT-26
Package / Case	SOT-23-6
