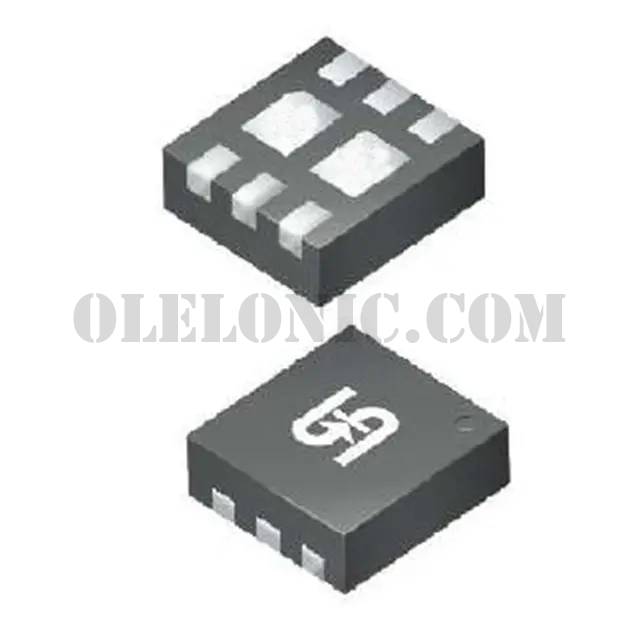

TSM301K12CQ RFG

TSM301K12CQ RFG

Part NumberTSM301K12CQ RFG

ManufacturerTaiwan Semiconductor Corporation

DescriptionMOSFET P-CH 20V 4.5A 6-TDFN

DatasheetTSM301K12

Package / Case6-VDFN Exposed Pad

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionP-Channel 20V 4.5A (Ta) 6.5W (Tc) Surface Mount 6-TDFN (2x2)

To learn about the specification of TSM301K12CQ RFG, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add TSM301K12CQ RFG with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of TSM301K12CQ RFG.
We are offering TSM301K12CQ RFG for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

TSM301K12CQ RFG - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	TSM301K12
Standard Package	3000
Manufacturer	Taiwan Semiconductor Corporation
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25°C	4.5A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.8V, 4.5V
Rds On (Max) @ Id, Vgs	94mOhm @ 2.8A, 4.5V
Vgs(th) (Max) @ Id	500mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs	4.5nC @ 4.5V
Vgs (Max)	±12V
Input Capacitance (Ciss) (Max) @ Vds	5.2pF @ 6V
FET Feature	-
Power Dissipation (Max)	6.5W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	6-TDFN (2x2)
Package / Case	6-VDFN Exposed Pad
