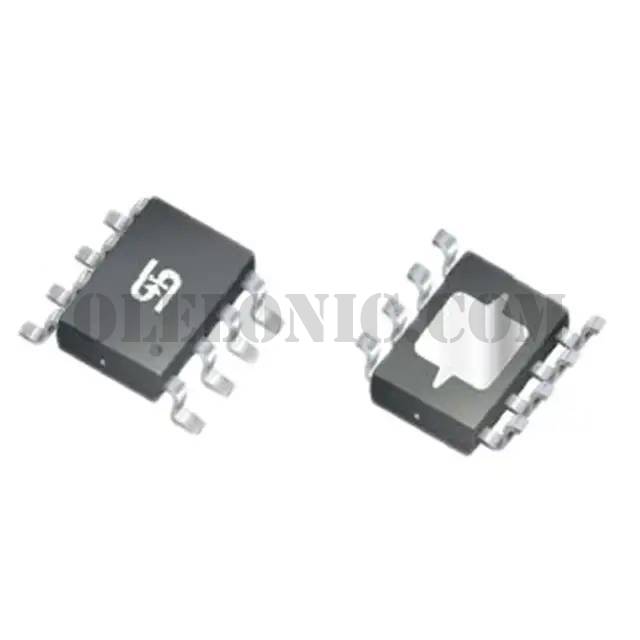

TSM120N06LCS RLG

TSM120N06LCS RLG

Part NumberTSM120N06LCS RLG

ManufacturerTaiwan Semiconductor Corporation

DescriptionMOSFET N-CHANNEL 60V 23A 8SOP

DatasheetTSM120N06LCS

Package / Case8-SOIC (0.154", 3.90mm Width)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 60V 23A (Tc) 12.5W (Tc) Surface Mount 8-SOP

To learn about the specification of TSM120N06LCS RLG, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add TSM120N06LCS RLG with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of TSM120N06LCS RLG.
We are offering TSM120N06LCS RLG for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

TSM120N06LCS RLG - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	TSM120N06LCS
Standard Package	1
Manufacturer	Taiwan Semiconductor Corporation
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60V
Current - Continuous Drain (Id) @ 25°C	23A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	12mOhm @ 10A, 10V
Vgs(th) (Max) @ Id	2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	37nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	2193pF @ 30V
FET Feature	-
Power Dissipation (Max)	12.5W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-SOP
Package / Case	8-SOIC (0.154", 3.90mm Width)
