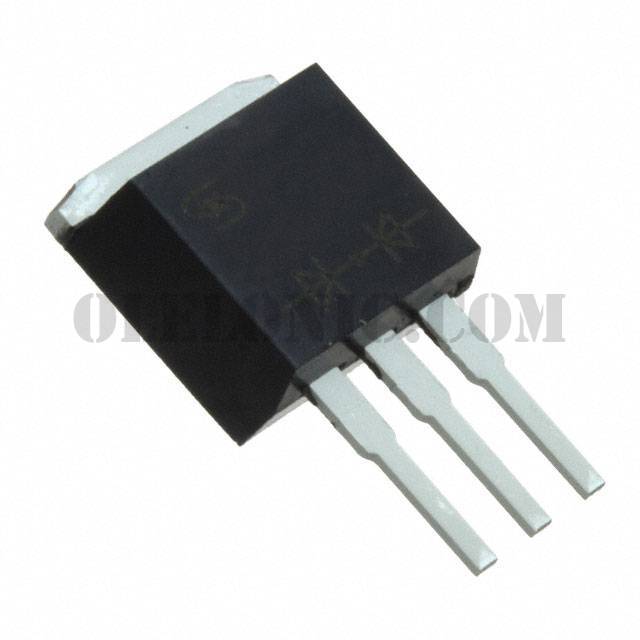

TSI20H100CW C0G

Part NumberTSI20H100CW C0G

ManufacturerTaiwan Semiconductor Corporation

DescriptionDIODE ARRAY SCHOTTKY 100V I2PAK

DatasheetTSI20H100CW - TSI20H200CW

Package / CaseTO-262-3 Long Leads, I²Pak, TO-262AA

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Array 1 Pair Common Cathode Schottky 100V 10A Through Hole TO-262-3 Long Leads, I²Pak, TO-262AA

To learn about the specification of TSI20H100CW C0G, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add TSI20H100CW C0G with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of TSI20H100CW C0G.
We are offering TSI20H100CW C0G for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

TSI20H100CW C0G - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Arrays
Datasheet	TSI20H100CW - TSI20H200CW
Standard Package	50
Manufacturer	Taiwan Semiconductor Corporation
Series	-
Packaging	Tube
Part Status	Active
Diode Configuration	1 Pair Common Cathode
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	100V
Current - Average Rectified (Io) (per Diode)	10A
Voltage - Forward (Vf) (Max) @ If	570mV @ 10A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr	200µA @ 100V
Operating Temperature - Junction	-55°C ~ 150°C
Mounting Type	Through Hole
Package / Case	TO-262-3 Long Leads, I²Pak, TO-262AA
Supplier Device Package	I2PAK
