TS110-8A1-AP
TS110-8A1-AP
Part Number TS110-8A1-AP
Description SCR 800V 1.25A 10MA TO-92

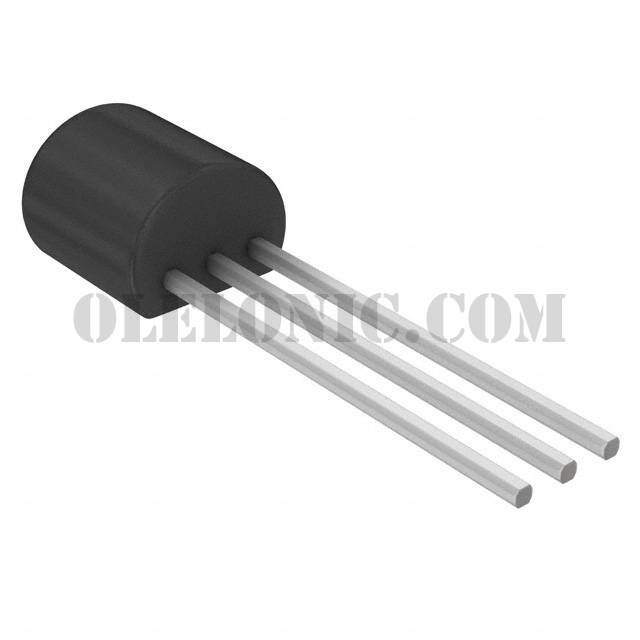

Package / Case TO-226-3, TO-92-3 (TO-226AA)
Unit Price Request a Quote
Lead Time To be Confirmed
Detailed Description SCR 800V 1.25A Sensitive Gate Through Hole
To learn about the specification of TS110-8A1-AP, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add TS110-8A1-AP with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of TS110-8A1-AP.
We are offering TS110-8A1-AP for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
TS110-8A1-AP - Product Attributes
Categories
Discrete Semiconductor Products / Thyristors - SCRs
Datasheet TS110-8
Standard Package 1
Manufacturer STMicroelectronics
Series -
Packaging Cut Tape (CT)
Part Status Active
Voltage - Off State 800V
Voltage - Gate Trigger (Vgt) (Max) 800mV
Current - Gate Trigger (Igt) (Max) 100µA
Voltage - On State (Vtm) (Max) 1.6V
Current - On State (It (AV)) (Max) 800mA
Current - On State (It (RMS)) (Max) 1.25A
Current - Hold (Ih) (Max) 12mA
Current - Off State (Max) 1µA
Current - Non Rep. Surge 50, 60Hz (Itsm) 20A, 21A
SCR Type Sensitive Gate
Operating Temperature -40°C ~ 125°C
Mounting Type Through Hole
Package / Case TO-226-3, TO-92-3 (TO-226AA)
