Categories	Discrete Semiconductor Products / Diodes - Bridge Rectifiers
Datasheet	TS10K40-A - TS10K80-A
Standard Package	20
Manufacturer	Taiwan Semiconductor Corporation
Series	-
Part Status	Active
Diode Type	Single Phase
Technology	Standard
Voltage - Peak Reverse (Max)	600V
Current - Average Rectified (Io)	10A
Voltage - Forward (Vf) (Max) @ If	1V @ 5A
Current - Reverse Leakage @ Vr	10µA @ 600V
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole

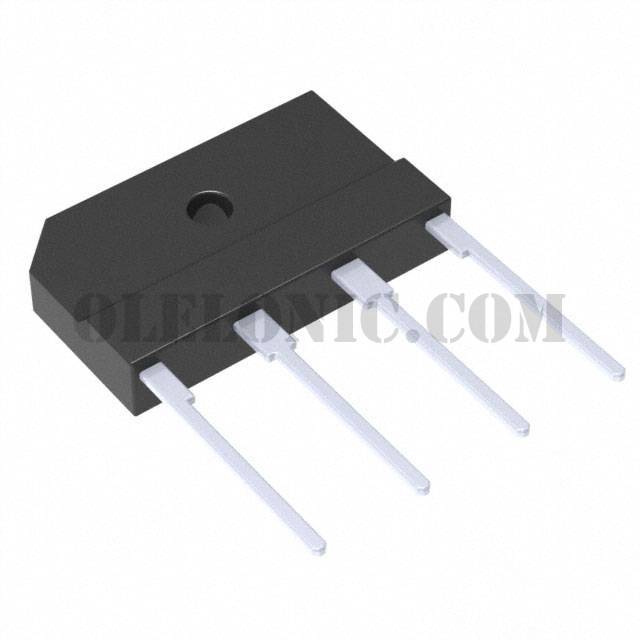

Package / Case	4-SIP, TS4K
Supplier Device Package	TS4K
