TPS1120DR

TPS1120DR

Part NumberTPS1120DR

ManufacturerTexas Instruments

DescriptionMOSFET 2P-CH 15V 1.17A 8-SOIC

DatasheetTPS1120, TPS1120Y

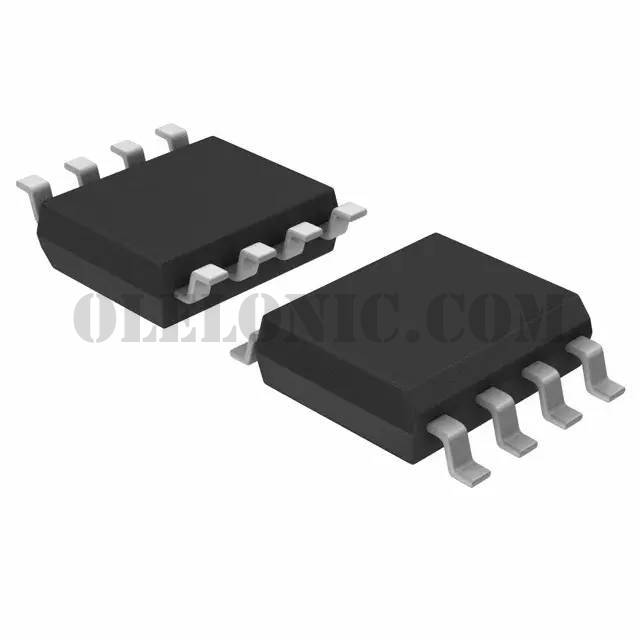

Package / Case8-SOIC (0.154", 3.90mm Width)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array 2 P-Channel (Dual) 15V 1.17A 840mW Surface Mount 8-SOIC

To learn about the specification of TPS1120DR, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add TPS1120DR with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of TPS1120DR.
We are offering TPS1120DR for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

TPS1120DR - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet	TPS1120, TPS1120Y
Standard Package	2500
Manufacturer	Texas Instruments
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	2 P-Channel (Dual)
FET Feature	Logic Level Gate
Drain to Source Voltage (Vdss)	15V
Current - Continuous Drain (Id) @ 25°C	1.17A
Rds On (Max) @ Id, Vgs	180mOhm @ 1.5A, 10V
Vgs(th) (Max) @ Id	1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	5.45nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	-
Power - Max	840mW
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	8-SOIC (0.154", 3.90mm Width)
Supplier Device Package	8-SOIC
Base Part Number	TPS1120
