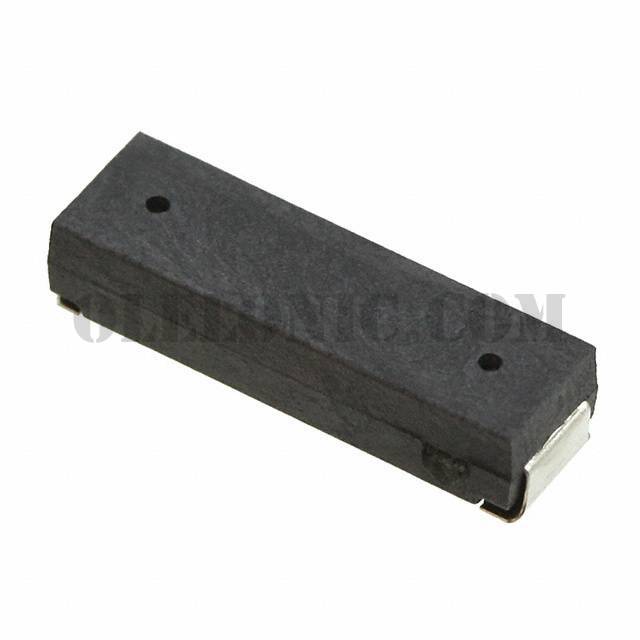

TPL1254035-712J-708N

Part NumberTPL1254035-712J-708N

ManufacturerTDK Corporation

DescriptionFIXED IND 7.08MH 45 OHM SMD

DatasheetTPL Series

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description7.08mH Unshielded Inductor 45Ohm Nonstandard

To learn about the specification of TPL1254035-712J-708N, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add TPL1254035-712J-708N with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of TPL1254035-712J-708N.
We are offering TPL1254035-712J-708N for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

TPL1254035-712J-708N - Product Attributes

Categories

Inductors, Coils, Chokes / Fixed Inductors

Datasheet

TPL Series

Standard Package

2500

Manufacturer

TDK Corporation

Series

TPL

Packaging

Tape & Reel (TR)

Part Status

Not For New Designs

Type

Material - Core

Inductance

7.08mH

Tolerance

±5%

Current - Saturation

Shielding

Unshielded

DC Resistance (DCR)

45Ohm

Q @ Freq

72 @ 125kHz

Frequency - Self Resonant

800kHz

Ratings

Operating Temperature

-40°C ~ 125°C

Inductance Frequency - Test

125kHz

Mounting Type

Surface Mount

Package / Case

Nonstandard

Supplier Device Package

Size / Dimension

0.492" L x 0.154" W (12.50mm x 3.90mm)

Height - Seated (Max)

0.146" (3.70mm)
