Categories	Capacitors / Electric Double Layer Capacitors (EDLC), Supercapacitors
Datasheet	TPL-22/12X35F
Standard Package	50
Manufacturer	Tecate Group
Series	TPL
Packaging	Bulk
Part Status	Active
Capacitance	22F
Tolerance	-10%, +20%
Voltage - Rated	2.7V
ESR (Equivalent Series Resistance)	30mOhm @ 1kHz
Lifetime @ Temp.	1000 Hrs @ 85°C
Termination	PC Pins
Mounting Type	Through Hole
Package / Case	Radial, Can
Lead Spacing	0.209" (5.30mm)
Size / Dimension	0.492" Dia (12.50mm)
Height - Seated (Max)	1.457" (37.00mm)
Operating Temperature	-40°C ~ 85°C

TPL-25/16X26F	Tecate Group, 25F (EDLC) Supercapacitor 2.7V Radial, Can 28mOhm @ 1kHz 1000 Hrs @ 85°C, TPL	View
TPL1183525-242Y-236N	TDK Corporation, 2.36mH Unshielded Inductor 24Ohm Nonstandard, TPL	View
TPL1183427-722Y-720N	TDK Corporation, 7.2mH Unshielded Inductor 50Ohm Nonstandard, TPL	View
TPL-28/12X40F	Tecate Group, 28F (EDLC) Supercapacitor 2.7V Radial, Can 25mOhm @ 1kHz 1000 Hrs @ 85°C, TPL	View
TPL802727-722H	TDK Corporation, 7.2mH Unshielded Inductor 105Ohm Max Nonstandard, TPL	View
TPL-70/18X45F	Tecate Group, 70F (EDLC) Supercapacitor 2.7V Radial, Can 13mOhm @ 1kHz 1000 Hrs @ 85°C, TPL	View
TPL1183427-722Y-720N	TDK Corporation, 7.2mH Unshielded Inductor 50Ohm Nonstandard, TPL	View
TPL1183525-262J-261N	TDK Corporation, 2.61mH Unshielded Inductor 26Ohm Nonstandard, TPL	View
TPL-100/18X60F	Tecate Group, 100F (EDLC) Supercapacitor 2.7V Radial, Can 10mOhm @ 1kHz 1000 Hrs @ 85°C, TPL	View
TPL-22/12X35F	Tecate Group, 22F (EDLC) Supercapacitor 2.7V Radial, Can 30mOhm @ 1kHz 1000 Hrs @ 85°C, TPL	View
TPL-5.0/10X20F	Tecate Group, 5F (EDLC) Supercapacitor 2.7V Radial, Can 90mOhm @ 1kHz 1000 Hrs @ 85°C, TPL	View
TPL-40/12X46F	Tecate Group, 40F (EDLC) Supercapacitor 2.7V Radial, Can 19mOhm @ 1kHz 1000 Hrs @ 85°C, TPL	View

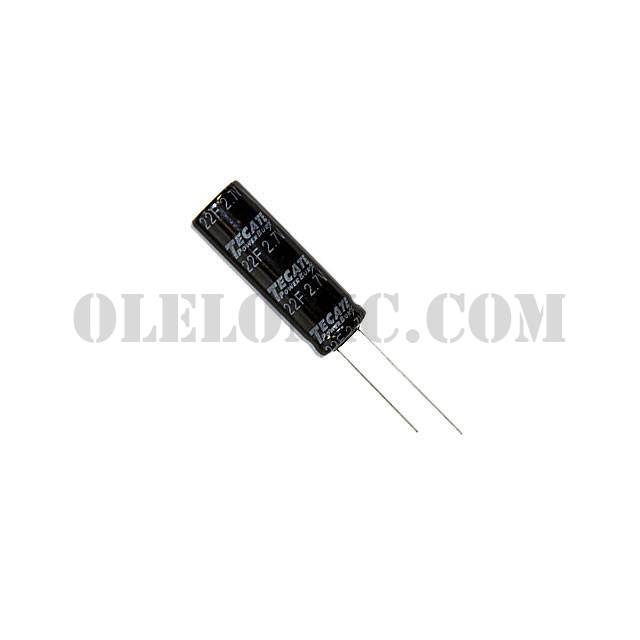

TPL-22/12X35F
