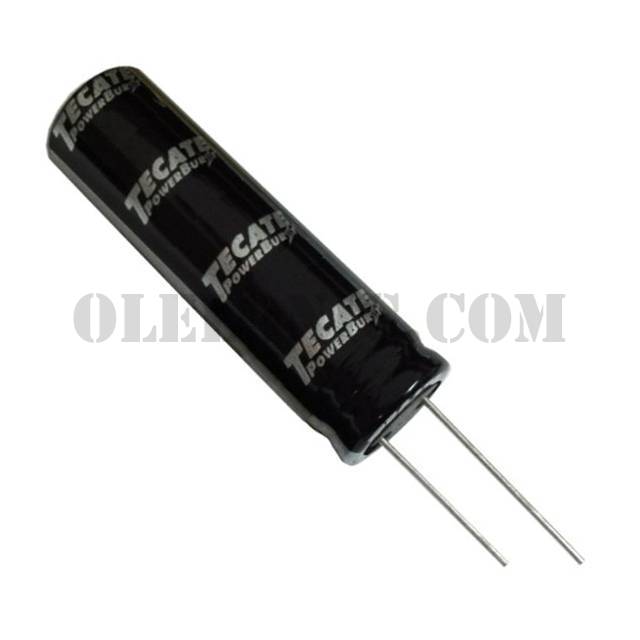

Categories	Capacitors / Electric Double Layer Capacitors (EDLC), Supercapacitors
Datasheet	TPL-10/10X30F
Standard Package	100
Manufacturer	Tecate Group
Series	TPL
Packaging	Bulk
Part Status	Active
Capacitance	10F
Tolerance	-10%, +20%
Voltage - Rated	2.7V
ESR (Equivalent Series Resistance)	60mOhm @ 1kHz
Lifetime @ Temp.	1000 Hrs @ 85°C
Termination	PC Pins
Mounting Type	Through Hole
Package / Case	Radial, Can
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	1.240" (31.50mm)
Operating Temperature	-40°C ~ 85°C
