TPIC1502DW

Part NumberTPIC1502DW

ManufacturerTexas Instruments

DescriptionMOSFET 20V 1.5A DMOS 24-DW

DatasheetTPIC1502

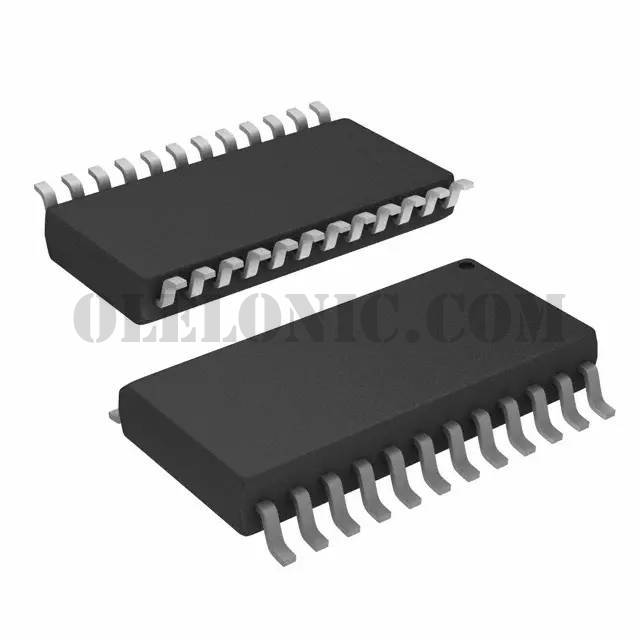

Package / Case24-SOIC (0.295", 7.50mm Width)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array 20V 1.5A 2.86W Surface Mount 24-SOIC

To learn about the specification of TPIC1502DW, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add TPIC1502DW with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of TPIC1502DW.
We are offering TPIC1502DW for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

TPIC1502DW - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays

Datasheet

TPIC1502

Standard Package

1000

Manufacturer

Texas Instruments

Series

Packaging

Tube

Part Status

Obsolete

FET Type

FET Feature

Logic Level Gate

Drain to Source Voltage (Vdss)

20V

Current - Continuous Drain (Id) @ 25°C

1.5A

Rds On (Max) @ Id, Vgs

300mOhm @ 1.5A, 10V

Vgs(th) (Max) @ Id

2.2V @ 1mA

Gate Charge (Qg) (Max) @ Vgs

2.1nC @ 10V

Input Capacitance (Ciss) (Max) @ Vds

98pF @ 14V

Power - Max

2.86W

Operating Temperature

-40°C ~ 150°C (TJ)

Mounting Type

Surface Mount

Package / Case

24-SOIC (0.295", 7.50mm Width)

Supplier Device Package

24-SOIC
