TPH5R906NH,L1Q

TPH5R906NH,L1Q

Part NumberTPH5R906NH,L1Q

ManufacturerToshiba Semiconductor and Storage

DescriptionMOSFET N CH 60V 28A 8-SOP ADV

DatasheetTPH5R906NH

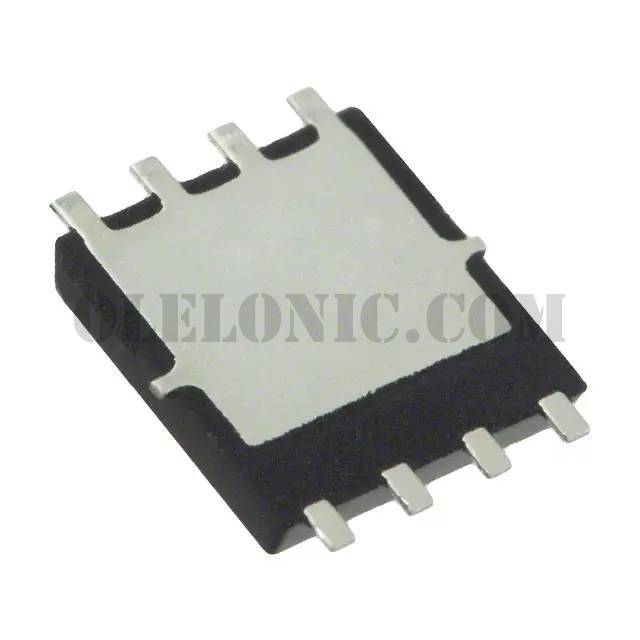

Package / Case8-PowerVDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 60V 28A (Ta) 1.6W (Ta), 57W (Tc) Surface Mount 8-SOP Advance (5x5)

To learn about the specification of TPH5R906NH,L1Q, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add TPH5R906NH,L1Q with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of TPH5R906NH,L1Q.
We are offering TPH5R906NH,L1Q for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

TPH5R906NH,L1Q - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	TPH5R906NH
Standard Package	5000
Manufacturer	Toshiba Semiconductor and Storage
Series	U-MOSVIII-H
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60V
Current - Continuous Drain (Id) @ 25°C	28A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	5.9mOhm @ 14A, 10V
Vgs(th) (Max) @ Id	4V @ 300µA
Gate Charge (Qg) (Max) @ Vgs	38nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	3100pF @ 30V
FET Feature	-
Power Dissipation (Max)	1.6W (Ta), 57W (Tc)
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-SOP Advance (5x5)
Package / Case	8-PowerVDFN
