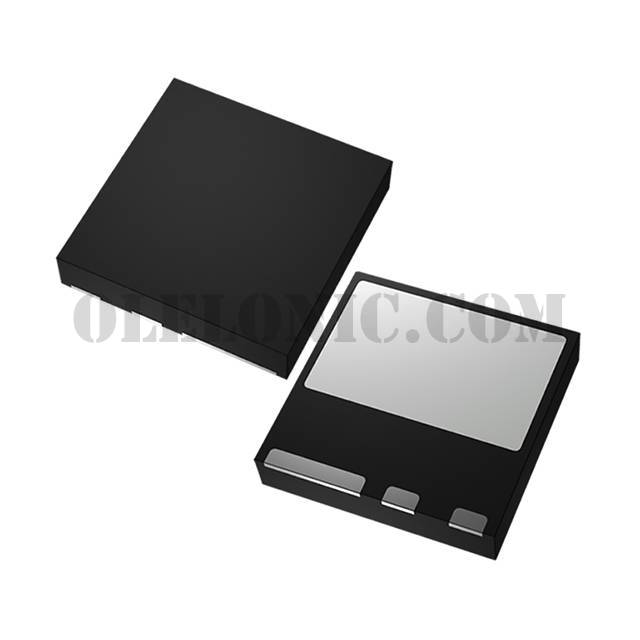

TPH3208LD

Part NumberTPH3208LD

ManufacturerTransphorm

DescriptionGANFET N-CH 650V 20A PQFN

DatasheetTPH3208L Series

Package / Case4-PowerDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 650V 20A (Tc) 96W (Tc) Surface Mount 4-PQFN (8x8)

To learn about the specification of TPH3208LD, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add TPH3208LD with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of TPH3208LD.
We are offering TPH3208LD for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

TPH3208LD - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single

Datasheet

TPH3208L Series

Standard Package

Manufacturer

Transphorm

Series

Packaging

Tube

Part Status

Obsolete

FET Type

N-Channel

Technology

GaNFET (Gallium Nitride)

Drain to Source Voltage (Vdss)

650V

Current - Continuous Drain (Id) @ 25°C

20A (Tc)

Drive Voltage (Max Rds On, Min Rds On)

10V

Rds On (Max) @ Id, Vgs

130mOhm @ 13A, 8V

Vgs(th) (Max) @ Id

2.6V @ 300µA

Gate Charge (Qg) (Max) @ Vgs

14nC @ 8V

Vgs (Max)

±18V

Input Capacitance (Ciss) (Max) @ Vds

760pF @ 400V

FET Feature

Power Dissipation (Max)

96W (Tc)

Operating Temperature

-55°C ~ 150°C (TJ)

Mounting Type

Surface Mount

Supplier Device Package

4-PQFN (8x8)

Package / Case

4-PowerDFN
