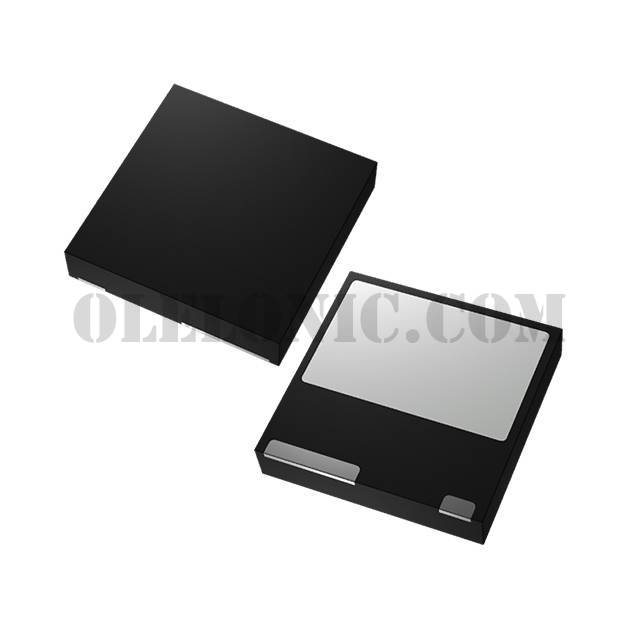

TPH3206LS

Part NumberTPH3206LS

ManufacturerTransphorm

DescriptionGANFET N-CH 600V 17A PQFN

DatasheetTPH3206LS

Package / Case3-PowerDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 600V 17A (Tc) 96W (Tc) Surface Mount PQFN (8x8)

To learn about the specification of TPH3206LS, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add TPH3206LS with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of TPH3206LS.
We are offering TPH3206LS for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

TPH3206LS - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single

Datasheet

TPH3206LS

Standard Package

Manufacturer

Transphorm

Series

Packaging

Tube

Part Status

Obsolete

FET Type

N-Channel

Technology

GaNFET (Gallium Nitride)

Drain to Source Voltage (Vdss)

600V

Current - Continuous Drain (Id) @ 25°C

17A (Tc)

Drive Voltage (Max Rds On, Min Rds On)

10V

Rds On (Max) @ Id, Vgs

180mOhm @ 11A, 8V

Vgs(th) (Max) @ Id

2.6V @ 500µA

Gate Charge (Qg) (Max) @ Vgs

9.3nC @ 4.5V

Vgs (Max)

±18V

Input Capacitance (Ciss) (Max) @ Vds

760pF @ 480V

FET Feature

Power Dissipation (Max)

96W (Tc)

Operating Temperature

-55°C ~ 175°C (TJ)

Mounting Type

Surface Mount

Supplier Device Package

PQFN (8x8)

Package / Case

3-PowerDFN
