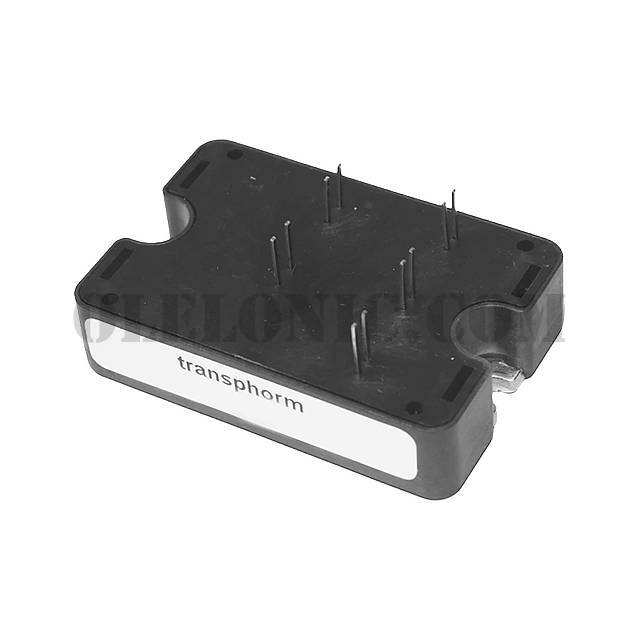

TPD3215M

Part NumberTPD3215M

ManufacturerTransphorm

DescriptionGANFET 2N-CH 600V 70A MODULE

DatasheetTPD3215M

Package / CaseModule

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array 2 N-Channel (Half Bridge) 600V 70A (Tc) 470W Through Hole Module

To learn about the specification of TPD3215M, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add TPD3215M with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of TPD3215M.
We are offering TPD3215M for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

TPD3215M - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays

Datasheet

TPD3215M

Standard Package

Manufacturer

Transphorm

Series

Packaging

Bulk

Part Status

Obsolete

FET Type

2 N-Channel (Half Bridge)

FET Feature

GaNFET (Gallium Nitride)

Drain to Source Voltage (Vdss)

600V

Current - Continuous Drain (Id) @ 25°C

70A (Tc)

Rds On (Max) @ Id, Vgs

34mOhm @ 30A, 8V

Vgs(th) (Max) @ Id

Gate Charge (Qg) (Max) @ Vgs

28nC @ 8V

Input Capacitance (Ciss) (Max) @ Vds

2260pF @ 100V

Power - Max

470W

Operating Temperature

-40°C ~ 150°C (TJ)

Mounting Type

Through Hole

Package / Case

Module

Supplier Device Package

Module
