TPCP8005-H(TE85L,F

Part NumberTPCP8005-H(TE85L,F

ManufacturerToshiba Semiconductor and Storage

DescriptionMOSFET N-CH 30V 11A PS-8

DatasheetTPCP8005-H

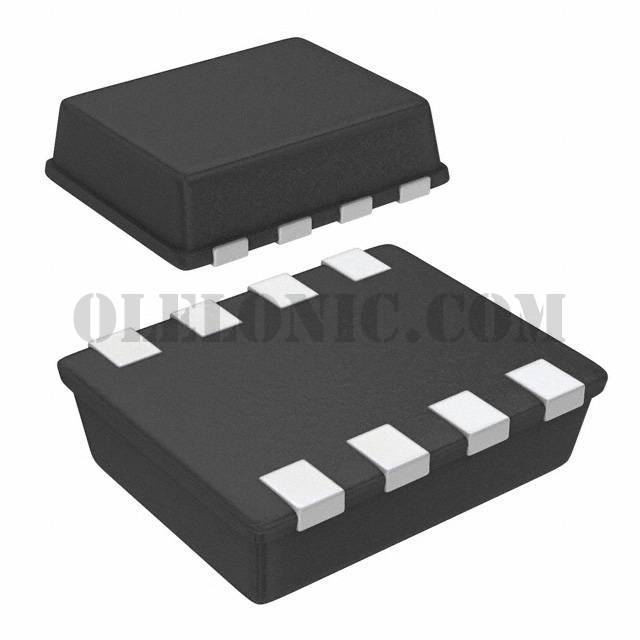

Package / Case8-SMD, Flat Lead

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 30V 11A (Ta) 840mW (Ta) Surface Mount PS-8 (2.9x2.4)

To learn about the specification of TPCP8005-H(TE85L,F, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add TPCP8005-H(TE85L,F with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of TPCP8005-H(TE85L,F.
We are offering TPCP8005-H(TE85L,F for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

TPCP8005-H(TE85L,F - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single

Datasheet

TPCP8005-H

Standard Package

3000

Manufacturer

Toshiba Semiconductor and Storage

Series

U-MOSV-H

Packaging

Tape & Reel (TR)

Part Status

Obsolete

FET Type

N-Channel

Technology

MOSFET (Metal Oxide)

Drain to Source Voltage (Vdss)

30V

Current - Continuous Drain (Id) @ 25°C

11A (Ta)

Drive Voltage (Max Rds On, Min Rds On)

4.5V, 10V

Rds On (Max) @ Id, Vgs

12.9mOhm @ 5.5A, 10V

Vgs(th) (Max) @ Id

2.5V @ 1mA

Gate Charge (Qg) (Max) @ Vgs

20nC @ 10V

Vgs (Max)

±20V

Input Capacitance (Ciss) (Max) @ Vds

2150pF @ 10V

FET Feature

Power Dissipation (Max)

840mW (Ta)

Operating Temperature

150°C (TJ)

Mounting Type

Surface Mount

Supplier Device Package

PS-8 (2.9x2.4)

Package / Case

8-SMD, Flat Lead
