TPCF8A01(TE85L)

Part NumberTPCF8A01(TE85L)

ManufacturerToshiba Semiconductor and Storage

DescriptionMOSFET N-CH 20V 3A VS-8

DatasheetTPCF8A01

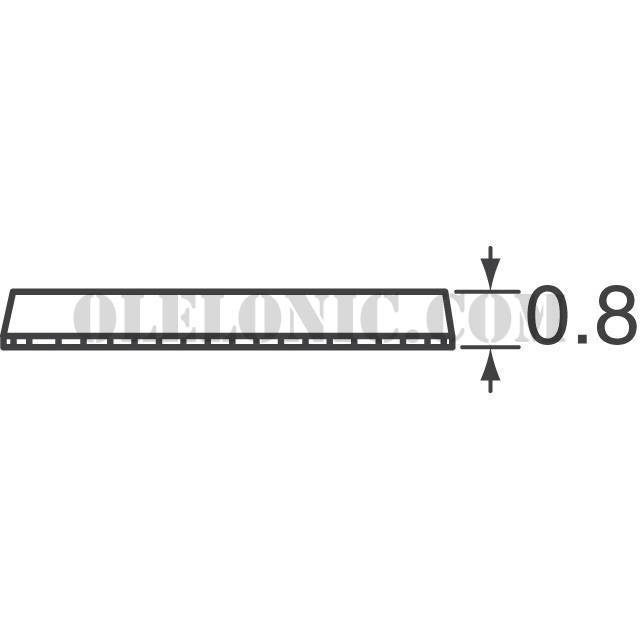

Package / Case8-SMD, Flat Lead

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 20V 3A (Ta) 330mW (Ta) Surface Mount VS-8 (2.9x1.5)

To learn about the specification of TPCF8A01(TE85L), please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add TPCF8A01(TE85L) with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of TPCF8A01(TE85L).
We are offering TPCF8A01(TE85L) for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

TPCF8A01(TE85L) - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single

Datasheet

TPCF8A01

Standard Package

4000

Manufacturer

Toshiba Semiconductor and Storage

Series

U-MOSIII

Packaging

Tape & Reel (TR)

Part Status

Obsolete

FET Type

N-Channel

Technology

MOSFET (Metal Oxide)

Drain to Source Voltage (Vdss)

20V

Current - Continuous Drain (Id) @ 25°C

3A (Ta)

Drive Voltage (Max Rds On, Min Rds On)

2V, 4.5V

Rds On (Max) @ Id, Vgs

49mOhm @ 1.5A, 4.5V

Vgs(th) (Max) @ Id

1.2V @ 200µA

Gate Charge (Qg) (Max) @ Vgs

7.5nC @ 5V

Vgs (Max)

±12V

Input Capacitance (Ciss) (Max) @ Vds

590pF @ 10V

FET Feature

Schottky Diode (Isolated)

Power Dissipation (Max)

330mW (Ta)

Operating Temperature

150°C (TJ)

Mounting Type

Surface Mount

Supplier Device Package

VS-8 (2.9x1.5)

Package / Case

8-SMD, Flat Lead
