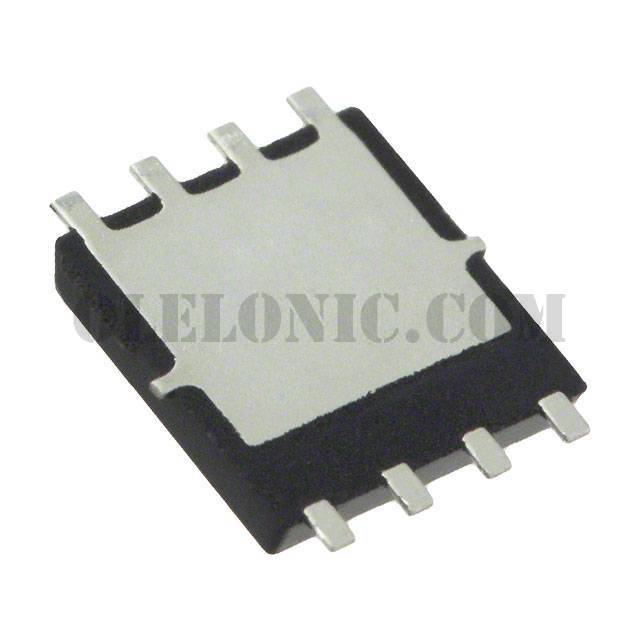

TPCA8048-H(TE12L,Q

Part NumberTPCA8048-H(TE12L,Q

ManufacturerToshiba Semiconductor and Storage

DescriptionMOSFET N-CH 60V 35A 8-SOP ADV

DatasheetTPCA8048-H

Package / Case8-PowerVDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 60V 35A (Ta) 1.6W (Ta), 45W (Tc) Surface Mount 8-SOP Advance (5x5)

To learn about the specification of TPCA8048-H(TE12L,Q, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add TPCA8048-H(TE12L,Q with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of TPCA8048-H(TE12L,Q.
We are offering TPCA8048-H(TE12L,Q for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

TPCA8048-H(TE12L,Q - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single

Datasheet

TPCA8048-H

Standard Package

Manufacturer

Toshiba Semiconductor and Storage

Series

U-MOSVI-H

Packaging

Cut Tape (CT)

Part Status

Discontinued at Digi-Key

FET Type

N-Channel

Technology

MOSFET (Metal Oxide)

Drain to Source Voltage (Vdss)

60V

Current - Continuous Drain (Id) @ 25°C

35A (Ta)

Drive Voltage (Max Rds On, Min Rds On)

4.5V, 10V

Rds On (Max) @ Id, Vgs

6.6mOhm @ 18A, 10V

Vgs(th) (Max) @ Id

2.3V @ 1mA

Gate Charge (Qg) (Max) @ Vgs

90nC @ 10V

Vgs (Max)

±20V

Input Capacitance (Ciss) (Max) @ Vds

7540pF @ 10V

FET Feature

Power Dissipation (Max)

1.6W (Ta), 45W (Tc)

Operating Temperature

150°C (TJ)

Mounting Type

Surface Mount

Supplier Device Package

8-SOP Advance (5x5)

Package / Case

8-PowerVDFN
