TP86R203NL,LQ

TP86R203NL,LQ

Part NumberTP86R203NL,LQ

ManufacturerToshiba Semiconductor and Storage

DescriptionMOSFET N CH 30V 19A 8SOP

DatasheetTP86R203NL

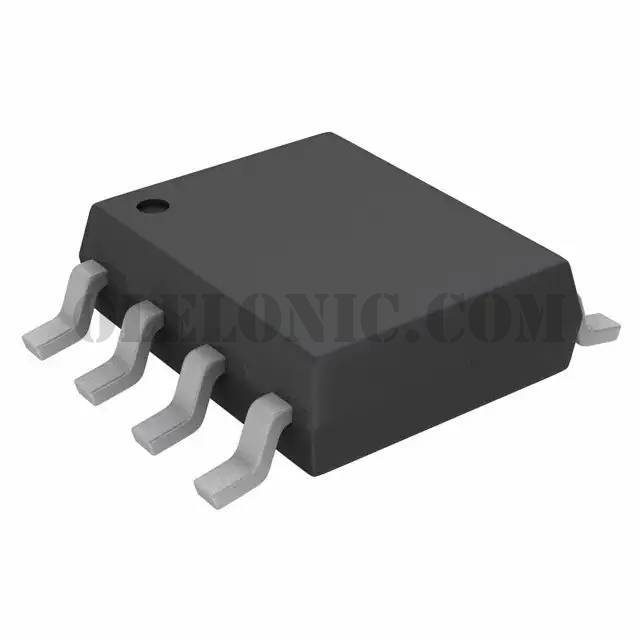

Package / Case8-SOIC (0.154", 3.90mm Width)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 30V 19A (Ta) 1W (Tc) Surface Mount 8-SOP

To learn about the specification of TP86R203NL,LQ, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add TP86R203NL,LQ with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of TP86R203NL,LQ.
We are offering TP86R203NL,LQ for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

TP86R203NL,LQ - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	TP86R203NL
Standard Package	1
Manufacturer	Toshiba Semiconductor and Storage
Series	U-MOSVIII-H
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	19A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	6.2mOhm @ 9A, 10V
Vgs(th) (Max) @ Id	2.3V @ 200µA
Gate Charge (Qg) (Max) @ Vgs	17nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	1400pF @ 15V
FET Feature	-
Power Dissipation (Max)	1W (Tc)
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-SOP
Package / Case	8-SOIC (0.154", 3.90mm Width)
