TN5050H-12WY

TN5050H-12WY

Part NumberTN5050H-12WY

ManufacturerSTMicroelectronics

DescriptionSCR 50A 1200V AUTO TO247

DatasheetTN5050H-12WY

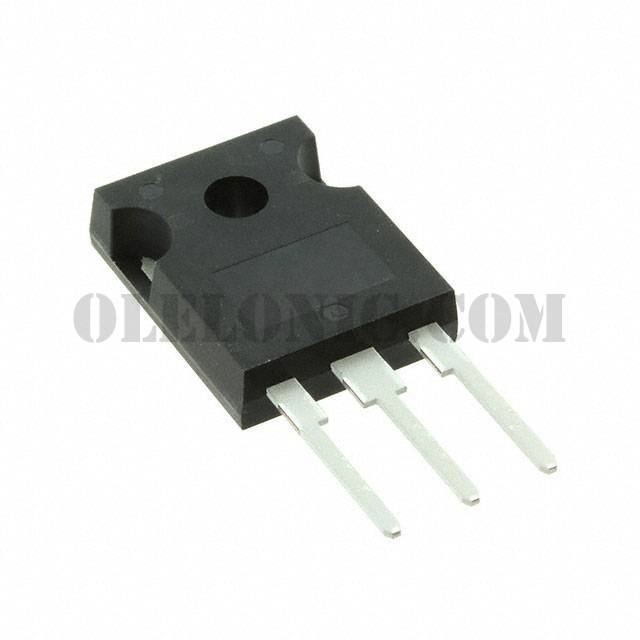

Package / CaseTO-247-3

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionSCR 1.2kV 80A Standard Recovery Through Hole TO-247-3

To learn about the specification of TN5050H-12WY, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add TN5050H-12WY with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of TN5050H-12WY.
We are offering TN5050H-12WY for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

TN5050H-12WY - Product Attributes

Categories	Discrete Semiconductor Products / Thyristors - SCRs
Datasheet	TN5050H-12WY
Standard Package	30
Manufacturer	STMicroelectronics
Series	Automotive, AEC-Q101
Packaging	Tube
Part Status	Active
Voltage - Off State	1.2kV
Voltage - Gate Trigger (Vgt) (Max)	1V
Current - Gate Trigger (Igt) (Max)	50mA
Voltage - On State (Vtm) (Max)	1.55V
Current - On State (It (AV)) (Max)	51A
Current - On State (It (RMS)) (Max)	80A
Current - Hold (Ih) (Max)	100mA
Current - Off State (Max)	5µA
Current - Non Rep. Surge 50, 60Hz (Itsm)	580A, 633A
SCR Type	Standard Recovery
Operating Temperature	-40°C ~ 150°C
Mounting Type	Through Hole
Package / Case	TO-247-3
Supplier Device Package	TO-247-3
