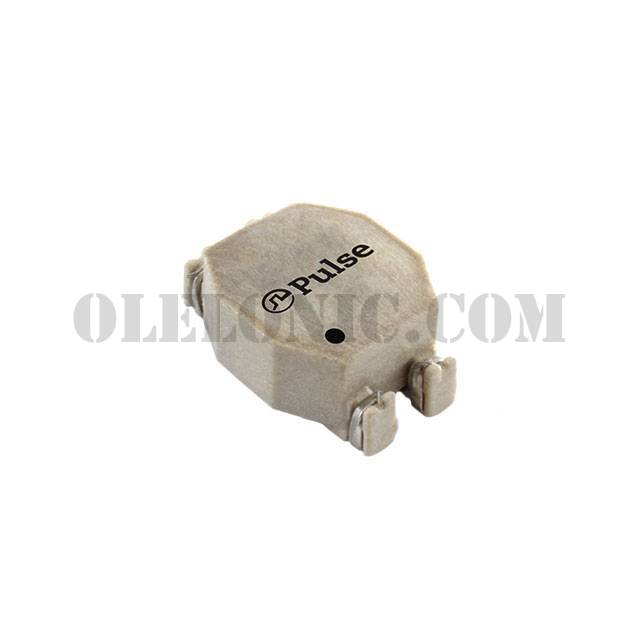

TM8116NL

Part NumberTM8116NL

ManufacturerPulse Electronics Network

DescriptionCMC 470UH 700MA 2LN 800 OHM SMD

DatasheetTM8116NL Drawing

Package / CaseHorizontal, 4 PC Pad

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description470µH @ 100kHz 2 Line Common Mode Choke Surface Mount 800 Ohms @ 100MHz 700mA DCR 300mOhm

To learn about the specification of TM8116NL, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add TM8116NL with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of TM8116NL.
We are offering TM8116NL for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

TM8116NL - Product Attributes

Categories

Filters / Common Mode Chokes

Datasheet

TM8116NL Drawing

Standard Package

Manufacturer

Pulse Electronics Network

Series

Packaging

Tube

Part Status

Active

Filter Type

Signal Line

Number of Lines

Impedance @ Frequency

800 Ohms @ 100MHz

Inductance @ Frequency

470µH @ 100kHz

Current Rating (Max)

700mA

DC Resistance (DCR) (Max)

300mOhm

Voltage Rating - DC

Voltage Rating - AC

Operating Temperature

-40°C ~ 85°C

Ratings

Approvals

Features

Mounting Type

Surface Mount

Size / Dimension

0.260" L x 0.248" W (6.60mm x 6.30mm)

Height (Max)

0.161" (4.10mm)

Package / Case

Horizontal, 4 PC Pad
