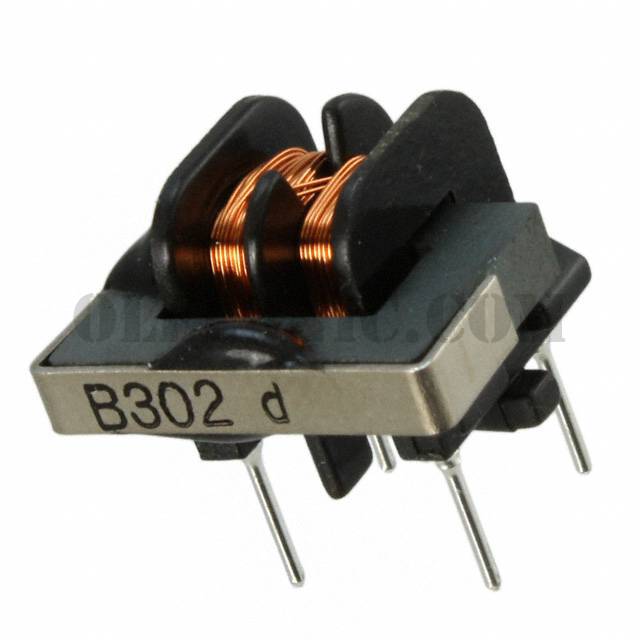

TLF9UBH302WK1

Part NumberTLF9UBH302WK1

ManufacturerTaiyo Yuden

DescriptionCMC 400MA 2LN 20 KOHM TH

DatasheetTLF9UBH302WK1 View all Specification

Package / CaseVertical, 4 PC Pin

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description2 Line Common Mode Choke Through Hole 20 kOhms @ 1MHz 400mA DCR 1.5Ohm

To learn about the specification of TLF9UBH302WK1, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add TLF9UBH302WK1 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of TLF9UBH302WK1.
We are offering TLF9UBH302WK1 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

TLF9UBH302WK1 - Product Attributes

Categories

Filters / Common Mode Chokes

Datasheet

TLF9UBH302WK1 View all Specification

Standard Package

500

Manufacturer

Taiyo Yuden

Series

TLF9

Packaging

Bulk

Part Status

Active

Filter Type

Signal Line

Number of Lines

Impedance @ Frequency

20 kOhms @ 1MHz

Current Rating (Max)

400mA

DC Resistance (DCR) (Max)

1.5Ohm

Voltage Rating - DC

50V

Voltage Rating - AC

Operating Temperature

-25°C ~ 115°C

Ratings

Approvals

Features

Mounting Type

Through Hole

Size / Dimension

0.669" L x 0.591" W (17.00mm x 15.00mm)

Height (Max)

0.472" (12.00mm)

Package / Case

Vertical, 4 PC Pin
