Home/Product Catalog/Resistors / Chip Resistor - Surface Mount/  TL2BR09FTE

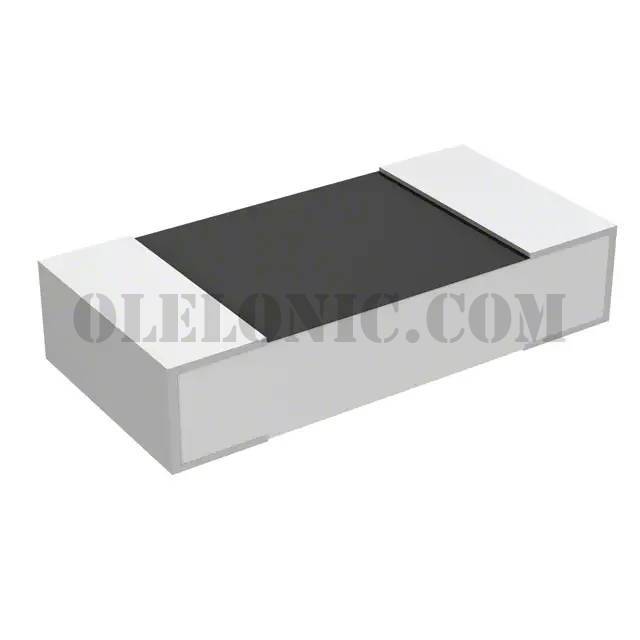

TL2BR09FTE


TL2BR09FTE

Part NumberTL2BR09FTE

Manufacturer

Description

Datasheet

Package / Case1206 (3216 Metric)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

TL2BR09FTE - Product Attributes

Categories Resistors / Chip Resistor - Surface Mount
Datasheet
Standard Package1
ManufacturerTE Connectivity Passive Product
SeriesTL, CGS
PackagingCut Tape (CT)
Part StatusActive
Resistance90 mOhms
Tolerance±1%
Power (Watts)0.25W, 1/4W
CompositionMetal Foil
FeaturesCurrent Sense
Temperature Coefficient±75ppm/°C
Operating Temperature-65°C ~ 170°C
Package / Case1206 (3216 Metric)
Supplier Device Package1206
Size / Dimension0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max)0.024" (0.60mm)
Number of Terminations2
Failure Rate-
