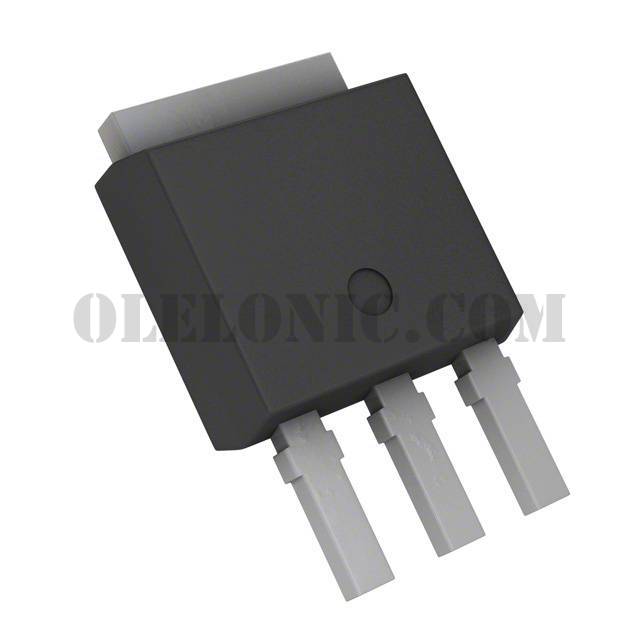

TK2Q60D(Q)

Part NumberTK2Q60D(Q)

ManufacturerToshiba Semiconductor and Storage

DescriptionMOSFET N-CH 600V 2A PW-MOLD

DatasheetTK2Q60D

Package / CaseTO-251-3 Stub Leads, IPak

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 600V 2A (Ta) 60W (Tc) Through Hole PW-MOLD2

To learn about the specification of TK2Q60D(Q), please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add TK2Q60D(Q) with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of TK2Q60D(Q).
We are offering TK2Q60D(Q) for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

TK2Q60D(Q) - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single

Datasheet

TK2Q60D

Standard Package

200

Manufacturer

Toshiba Semiconductor and Storage

Series

π-MOSVII

Packaging

Bulk

Part Status

Active

FET Type

N-Channel

Technology

MOSFET (Metal Oxide)

Drain to Source Voltage (Vdss)

600V

Current - Continuous Drain (Id) @ 25°C

2A (Ta)

Drive Voltage (Max Rds On, Min Rds On)

10V

Rds On (Max) @ Id, Vgs

4.3Ohm @ 1A, 10V

Vgs(th) (Max) @ Id

4.4V @ 1mA

Gate Charge (Qg) (Max) @ Vgs

7nC @ 10V

Vgs (Max)

±30V

Input Capacitance (Ciss) (Max) @ Vds

280pF @ 25V

FET Feature

Power Dissipation (Max)

60W (Tc)

Operating Temperature

150°C (TJ)

Mounting Type

Through Hole

Supplier Device Package

PW-MOLD2

Package / Case

TO-251-3 Stub Leads, IPak
