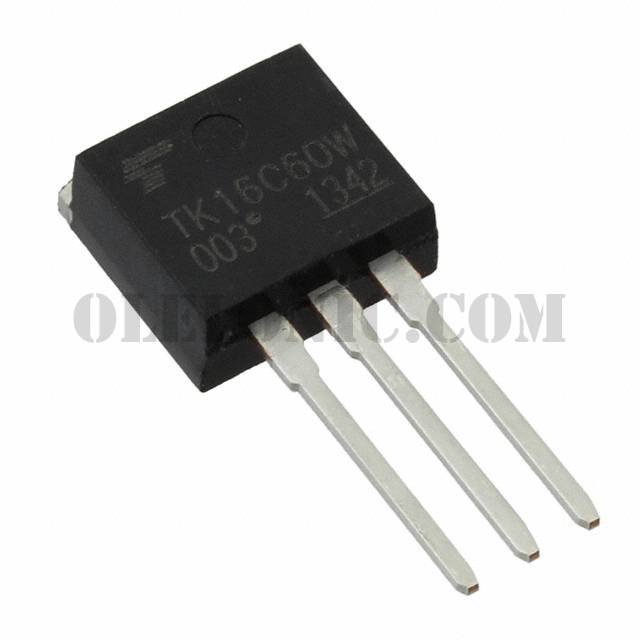

TK16C60W,S1VQ

Part NumberTK16C60W,S1VQ

ManufacturerToshiba Semiconductor and Storage

DescriptionMOSFET N-CH 600V 15.8A I2PAK

DatasheetTK16C60W

Package / CaseTO-262-3 Long Leads, I²Pak, TO-262AA

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 600V 15.8A (Ta) 130W (Tc) Through Hole I2PAK

To learn about the specification of TK16C60W,S1VQ, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add TK16C60W,S1VQ with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of TK16C60W,S1VQ.
We are offering TK16C60W,S1VQ for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

TK16C60W,S1VQ - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single

Datasheet

TK16C60W

Standard Package

Manufacturer

Toshiba Semiconductor and Storage

Series

DTMOSIV

Packaging

Tube

Part Status

Last Time Buy

FET Type

N-Channel

Technology

MOSFET (Metal Oxide)

Drain to Source Voltage (Vdss)

600V

Current - Continuous Drain (Id) @ 25°C

15.8A (Ta)

Drive Voltage (Max Rds On, Min Rds On)

10V

Rds On (Max) @ Id, Vgs

190mOhm @ 7.9A, 10V

Vgs(th) (Max) @ Id

3.7V @ 790µA

Gate Charge (Qg) (Max) @ Vgs

38nC @ 10V

Vgs (Max)

±30V

Input Capacitance (Ciss) (Max) @ Vds

1350pF @ 300V

FET Feature

Power Dissipation (Max)

130W (Tc)

Operating Temperature

150°C (TJ)

Mounting Type

Through Hole

Supplier Device Package

I2PAK

Package / Case

TO-262-3 Long Leads, I²Pak, TO-262AA
