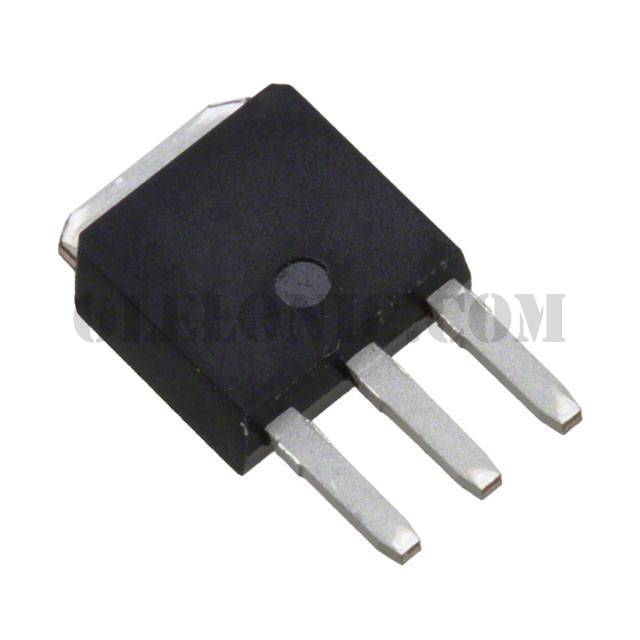

TK12Q60W,S1VQ

Part NumberTK12Q60W,S1VQ

ManufacturerToshiba Semiconductor and Storage

DescriptionMOSFET N CH 600V 11.5A IPAK

DatasheetTK12Q60W

Package / CaseTO-251-3 Stub Leads, IPak

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 600V 11.5A (Ta) 100W (Tc) Through Hole I-PAK

To learn about the specification of TK12Q60W,S1VQ, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add TK12Q60W,S1VQ with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of TK12Q60W,S1VQ.
We are offering TK12Q60W,S1VQ for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

TK12Q60W,S1VQ - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single

Datasheet

TK12Q60W

Standard Package

Manufacturer

Toshiba Semiconductor and Storage

Series

DTMOSIV

Packaging

Tube

Part Status

Active

FET Type

N-Channel

Technology

MOSFET (Metal Oxide)

Drain to Source Voltage (Vdss)

600V

Current - Continuous Drain (Id) @ 25°C

11.5A (Ta)

Drive Voltage (Max Rds On, Min Rds On)

10V

Rds On (Max) @ Id, Vgs

340mOhm @ 5.8A, 10V

Vgs(th) (Max) @ Id

3.7V @ 600µA

Gate Charge (Qg) (Max) @ Vgs

25nC @ 10V

Vgs (Max)

±30V

Input Capacitance (Ciss) (Max) @ Vds

890pF @ 300V

FET Feature

Super Junction

Power Dissipation (Max)

100W (Tc)

Operating Temperature

150°C (TJ)

Mounting Type

Through Hole

Supplier Device Package

I-PAK

Package / Case

TO-251-3 Stub Leads, IPak
