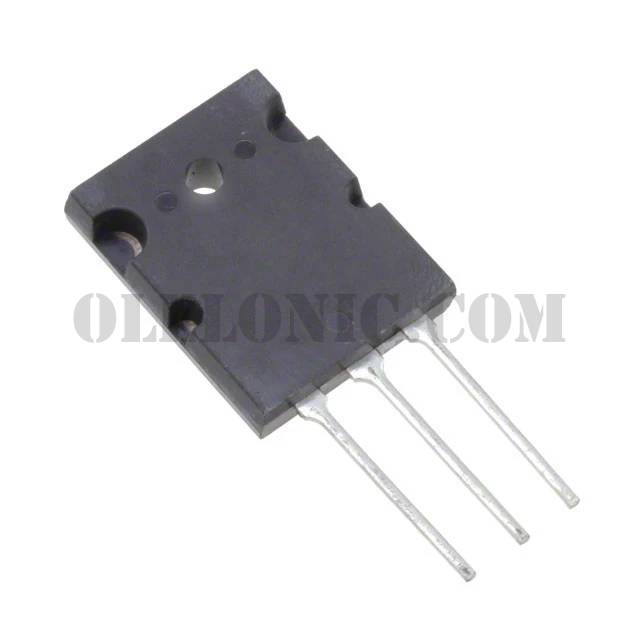

TK100L60W,VQ

TK100L60W,VQ

Part NumberTK100L60W,VQ

ManufacturerToshiba Semiconductor and Storage

DescriptionMOSFET N CH 600V 100A TO3P(L)

DatasheetTK100L60W

Package / CaseTO-3PL

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 600V 100A (Ta) 797W (Tc) Through Hole TO-3P(L)

To learn about the specification of TK100L60W,VQ, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add TK100L60W,VQ with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of TK100L60W,VQ.
We are offering TK100L60W,VQ for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

TK100L60W,VQ - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	TK100L60W
Standard Package	100
Manufacturer	Toshiba Semiconductor and Storage
Series	DTMOSIV
Packaging	Tube
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	600V
Current - Continuous Drain (Id) @ 25°C	100A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	18mOhm @ 50A, 10V
Vgs(th) (Max) @ Id	3.7V @ 5mA
Gate Charge (Qg) (Max) @ Vgs	360nC @ 10V
Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	15000pF @ 30V
FET Feature	Super Junction
Power Dissipation (Max)	797W (Tc)
Operating Temperature	150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-3P(L)
Package / Case	TO-3PL
