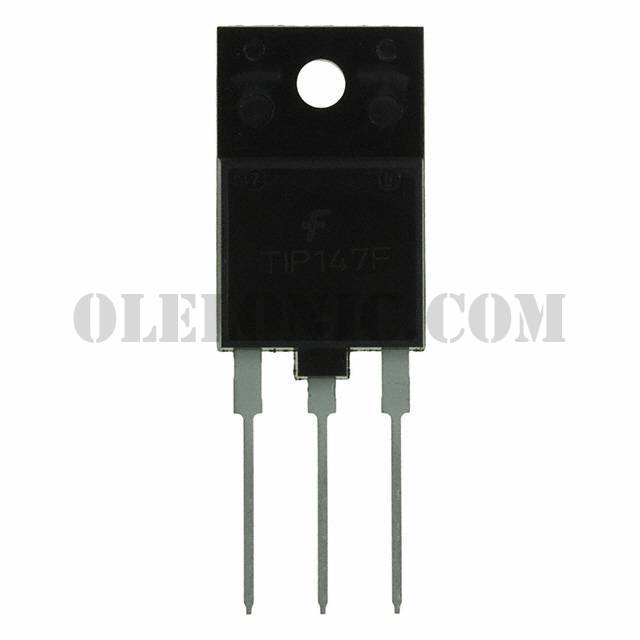

TIP147FTU

TIP147FTU

Part NumberTIP147FTU

ManufacturerON Semiconductor

DescriptionTRANS PNP DARL 100V 10A TO3PF

DatasheetTIP145F-47F

Package / CaseTO-3P-3 Full Pack

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor PNP - Darlington 100V 10A 125W Through Hole TO-3PF

To learn about the specification of TIP147FTU, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add TIP147FTU with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of TIP147FTU.
We are offering TIP147FTU for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

TIP147FTU - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single
Datasheet	TIP145F-47F
Standard Package	360
Manufacturer	ON Semiconductor
Series	-
Packaging	Tube
Part Status	Active
Transistor Type	PNP - Darlington
Current - Collector (Ic) (Max)	10A
Voltage - Collector Emitter Breakdown (Max)	100V
Vce Saturation (Max) @ Ib, Ic	3V @ 40mA, 10A
Current - Collector Cutoff (Max)	2mA
DC Current Gain (hFE) (Min) @ Ic, Vce	1000 @ 5A, 4V
Power - Max	125W
Frequency - Transition	-
Operating Temperature	150°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-3P-3 Full Pack
Supplier Device Package	TO-3PF
Base Part Number	TIP147
