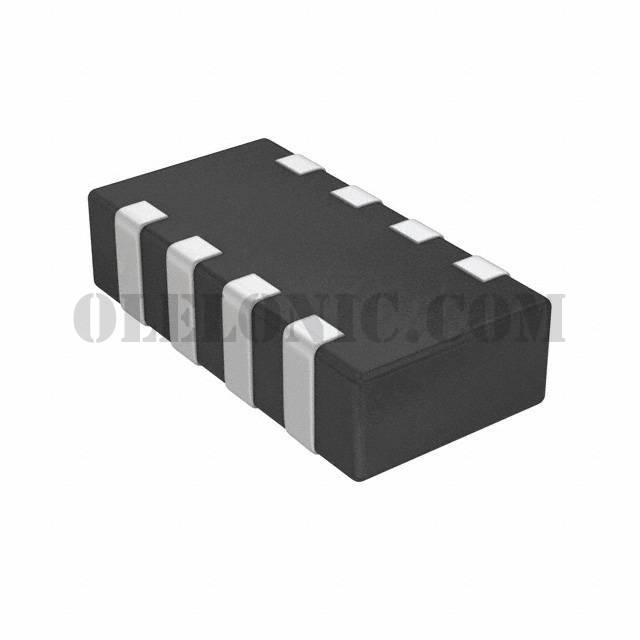

TCM2010-650-4P

Part NumberTCM2010-650-4P

ManufacturerTDK Corporation

DescriptionCMC 100MA 4LN 65 OHM SMD

DatasheetTCM1210,2010

Package / Case0804 (2010 Metric), 8 Lead

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description4 Line Common Mode Choke Surface Mount 65 Ohms @ 100MHz 100mA DCR 1.5Ohm

To learn about the specification of TCM2010-650-4P, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add TCM2010-650-4P with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of TCM2010-650-4P.
We are offering TCM2010-650-4P for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

TCM2010-650-4P - Product Attributes

Categories

Filters / Common Mode Chokes

Datasheet

TCM1210,2010

Standard Package

4000

Manufacturer

TDK Corporation

Series

TCM

Packaging

Tape & Reel (TR)

Part Status

Obsolete

Filter Type

Signal Line

Number of Lines

Impedance @ Frequency

65 Ohms @ 100MHz

Current Rating (Max)

100mA

DC Resistance (DCR) (Max)

1.5Ohm

Voltage Rating - DC

10V

Voltage Rating - AC

Operating Temperature

-25°C ~ 85°C

Ratings

Approvals

Features

Mounting Type

Surface Mount

Size / Dimension

0.079" L x 0.039" W (2.00mm x 1.00mm)

Height (Max)

0.035" (0.90mm)

Package / Case

0804 (2010 Metric), 8 Lead
